Parts Location [10/2022 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

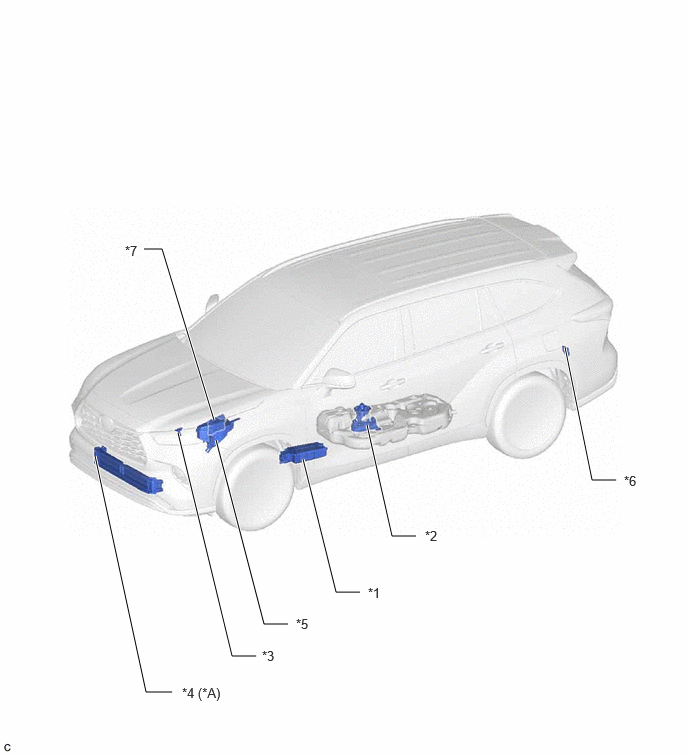

| *A | except Mexico Models | - | - |
| *1 | CANISTER | *2 | FUEL PUMP (for Low Pressure Side) |
| *3 | MASS AIR FLOW METER SUB-ASSEMBLY | *4 | RADIATOR SHUTTER ASSEMBLY - RADIATOR SHUTTER SUB-ASSEMBLY - SWING GRILLE ACTUATOR ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | FUEL PUMP CONTROL ECU |
| *7 | ECM | - | - |

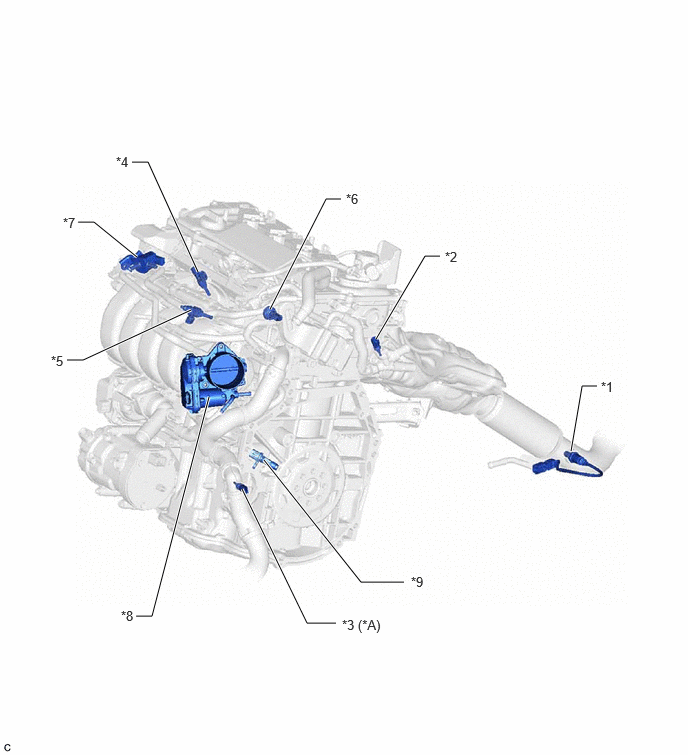

| *A | except Mexico Models | - | - |
| *1 | AIR FUEL RATIO SENSOR (Sensor 2) | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | NO. 2 ENGINE COOLANT TEMPERATURE SENSOR | *4 | PORT FUEL INJECTOR ASSEMBLY |
| *5 | DIRECT FUEL INJECTOR ASSEMBLY | *6 | NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *7 | VACUUM SWITCHING VALVE (PURGE VSV) | *8 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *9 | CRANKSHAFT POSITION SENSOR | - | - |
| *1 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 | EGR VALVE ASSEMBLY | *4 | FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 | KNOCK CONTROL SENSOR | *6 | MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 | WATER INLET HOUSING WITH WATER PUMP SUB-ASSEMBLY | - | - |
| *1 | AIR FUEL RATIO SENSOR (Sensor 1) | *2 | FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 | OIL PRESSURE AND TEMPERATURE SENSOR | *4 | OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 | CAMSHAFT POSITION SENSOR (for Intake Camshaft) | *6 | CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 | IGNITION COIL ASSEMBLY | *8 | WATER BYPASS HOSE ASSEMBLY - FLOW SHUTTING VALVE |
