Section 6 (Engine Control System (A25A-FXS) - Diagnostics - Introduction (1 Of 6))
>>
SFI System
>>

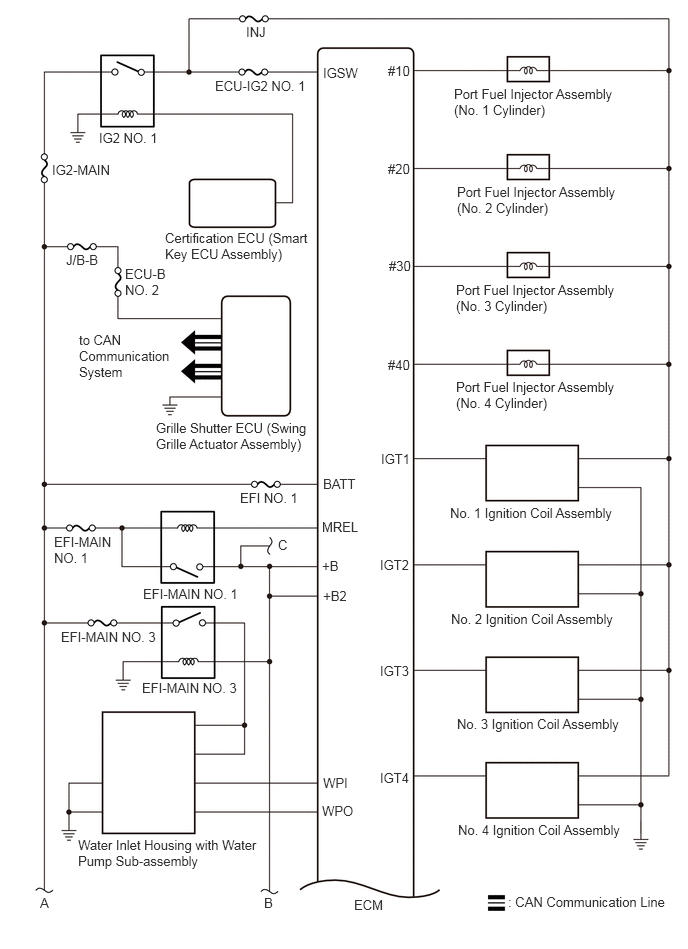

System Diagram [12/2019 - 10/2021]
>>

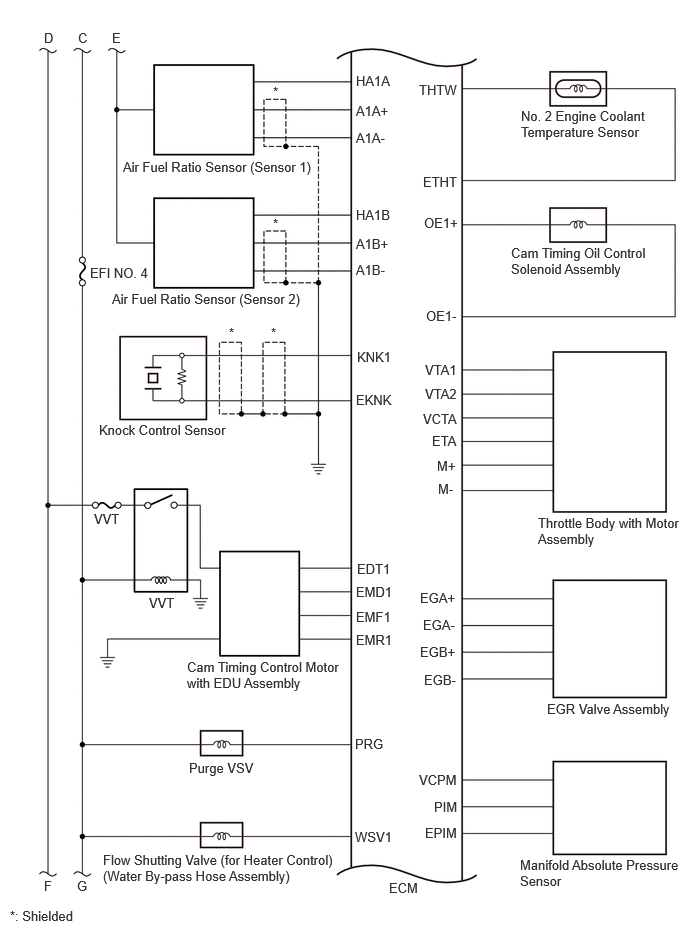

System Diagram [12/2019 - 10/2021]

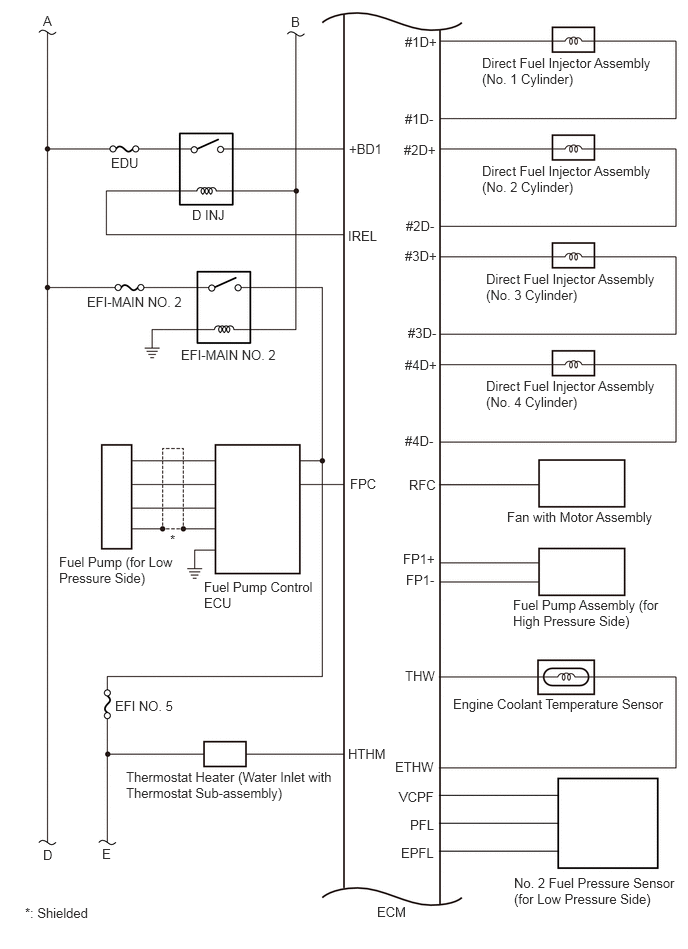

System Diagram [12/2019 - 10/2021]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
