Section 6 (Engine Control System (A25A-FXS) - Diagnostics - Introduction (1 Of 6))
>>
SFI System
>>

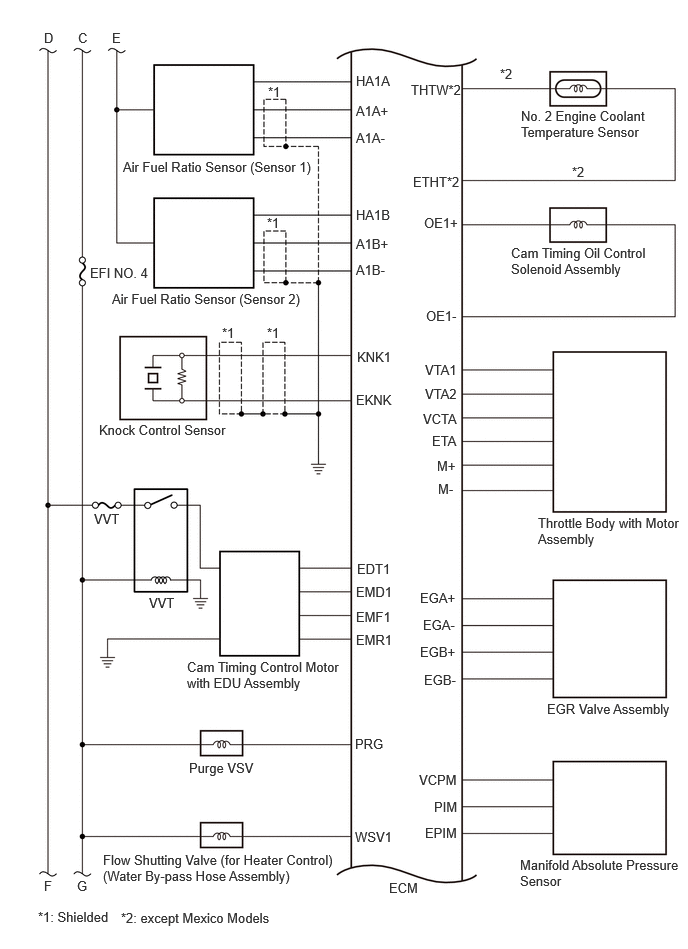

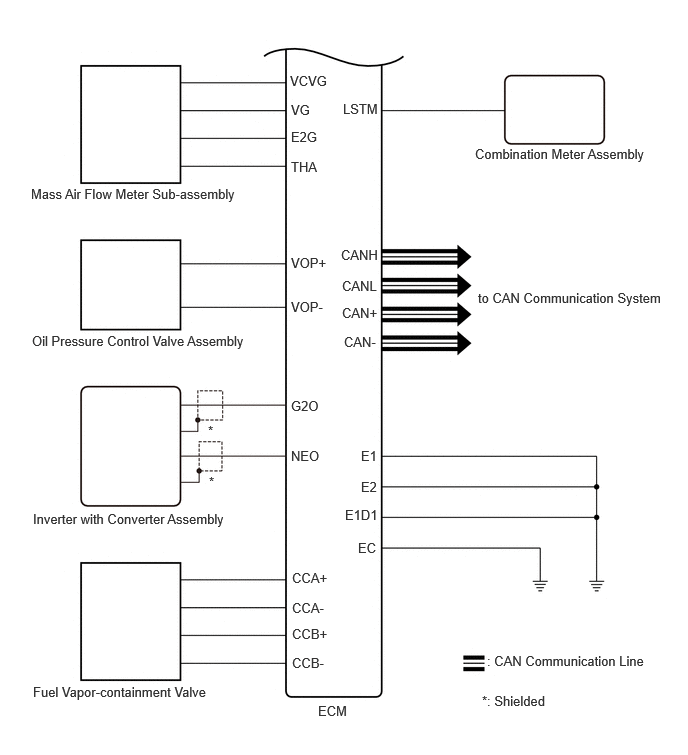

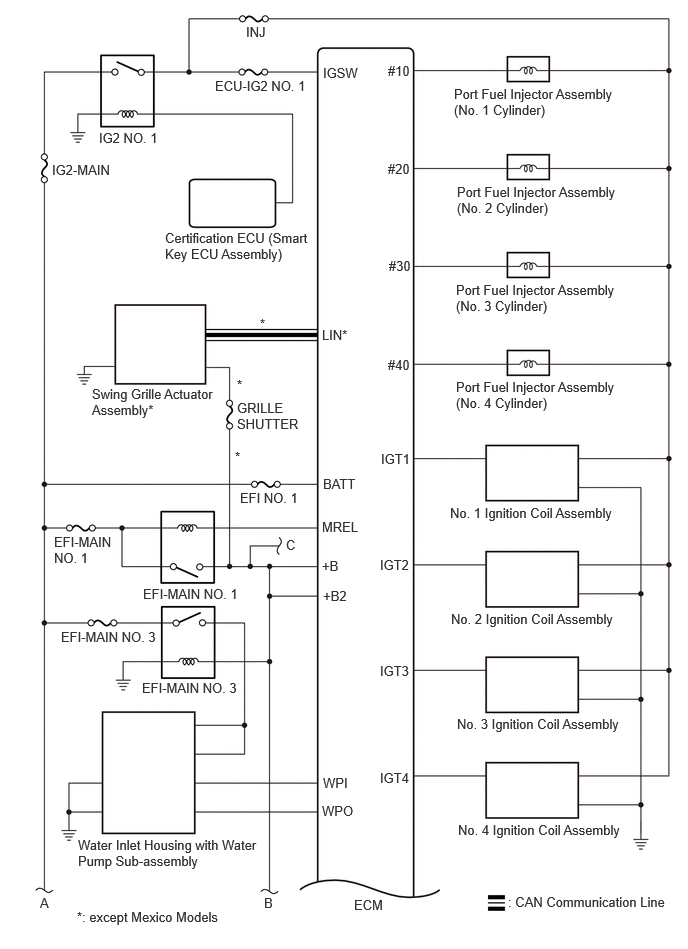

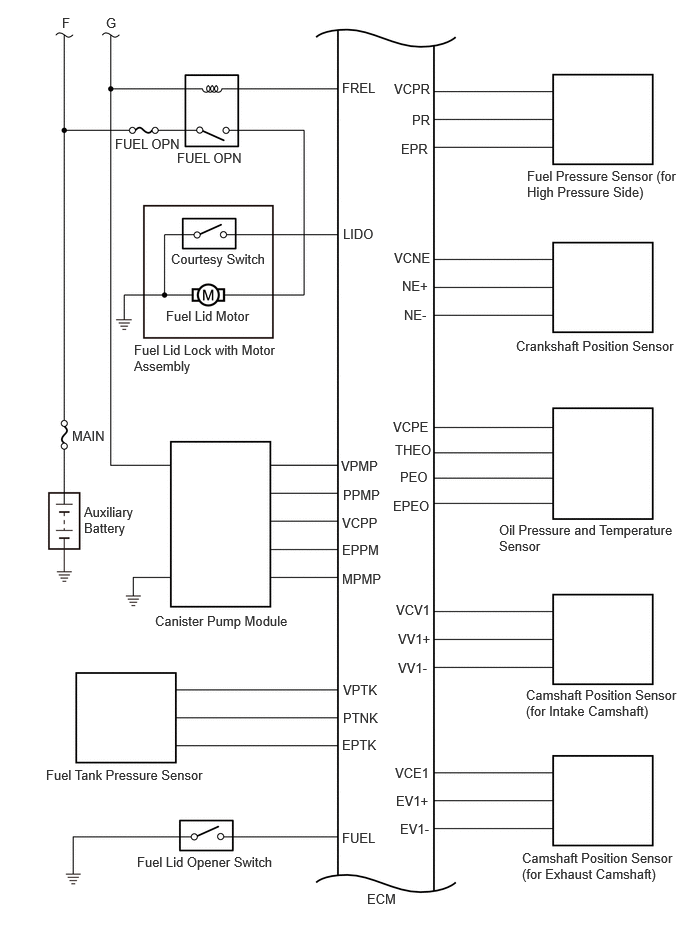

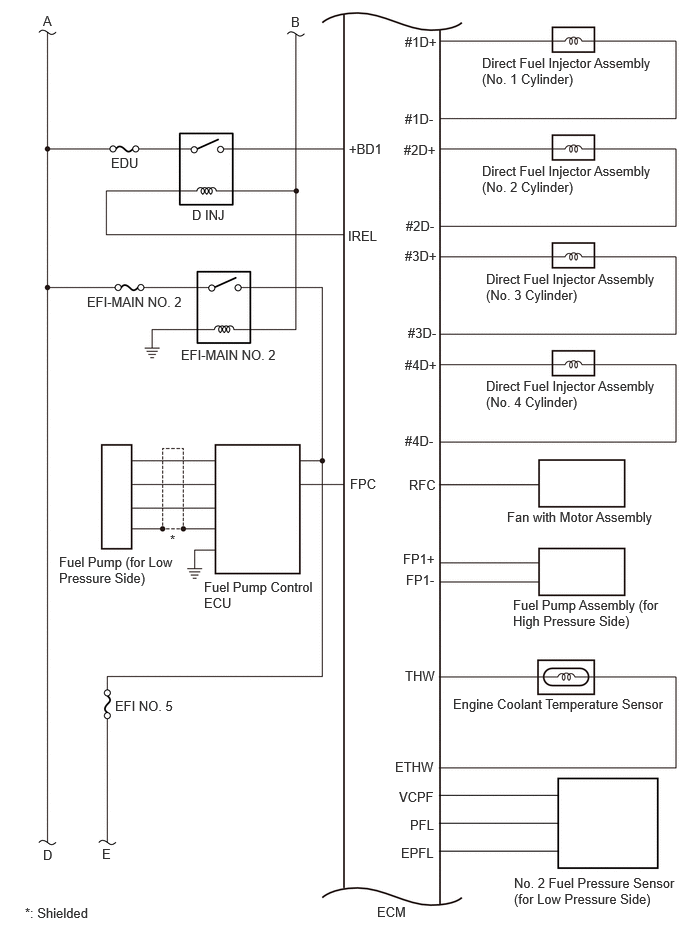

System Diagram [10/2022 - 11/2023]
>>
System Diagram [10/2022 - 11/2023]
System Diagram [10/2022 - 11/2023]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
