System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

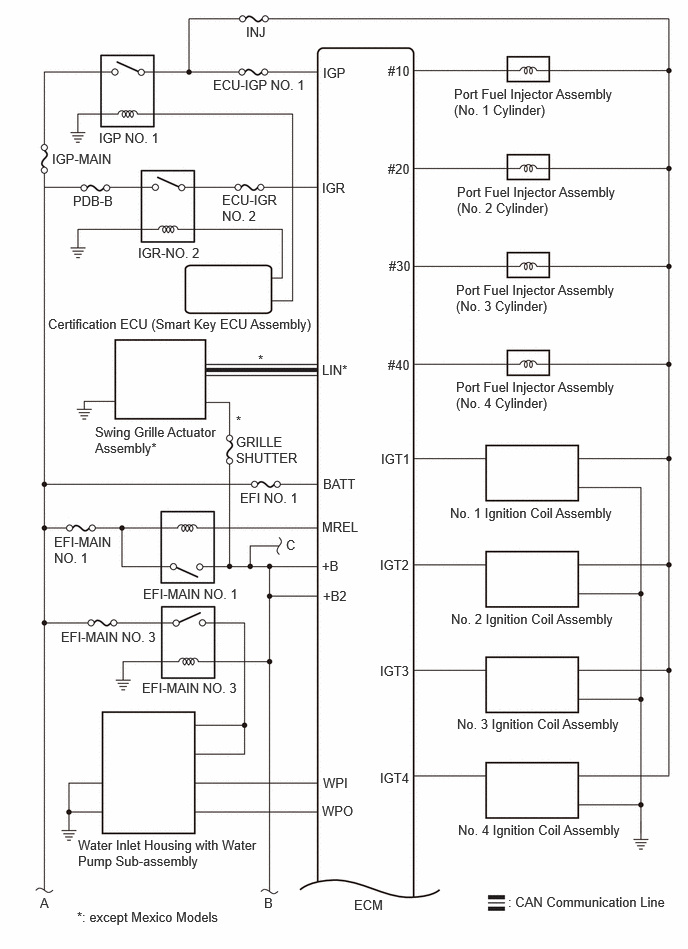

GTY1180974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1103831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1109110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

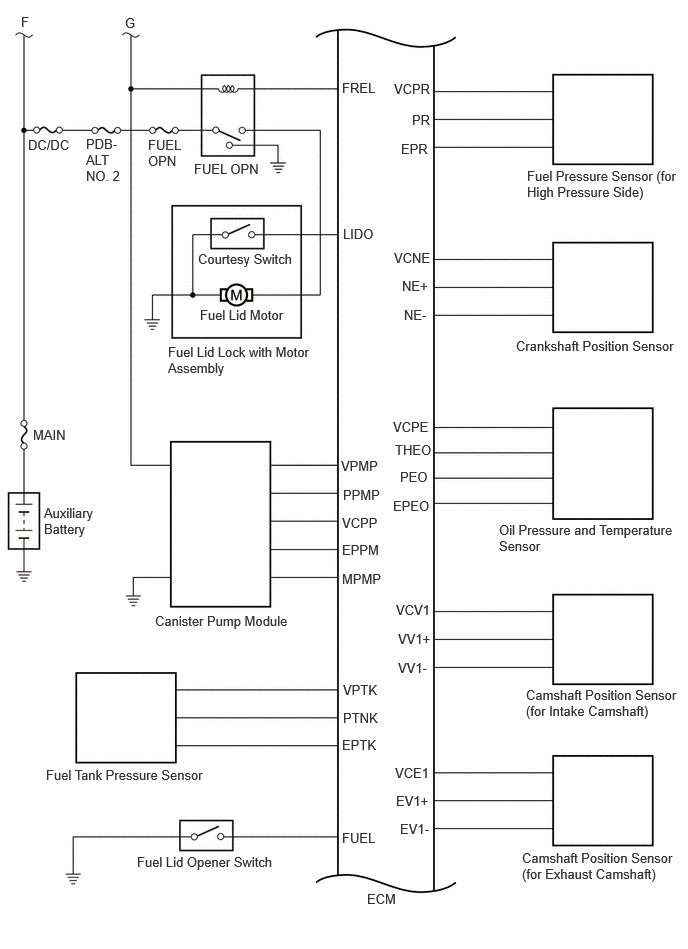

GTY1180767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY863595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
