Components [11/2023 - ]

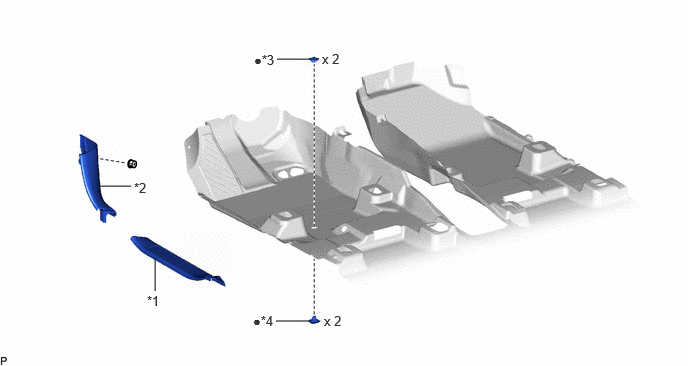

Fig 1: Mat Set Plate Replacement Components
GTY1178521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DOOR SCUFF PLATE LH *2 COWL SIDE TRIM SUB-ASSEMBLY LH
*3 MAT SET UPPER PLATE *4 MAT SET LOWER PLATE
• Non-reusable part - -
