Electronic Circuit Inspection Procedure [12/2019 - ]

  1. BASIC INSPECTION
    1. WHEN MEASURING RESISTANCE OF ELECTRONIC PARTS
      1. Unless otherwise stated, all resistance measurements are standard values measured at an ambient temperature of 20°C (68°F). Resistance measurements may be inaccurate if measured at high temperatures, i.e. immediately after the vehicle has been running. Measurements should be made after the engine has cooled down.

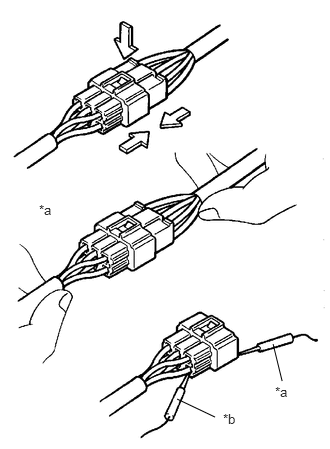

    2. GTY375891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Incorrect
      *b Correct

      HANDLING CONNECTORS

      1. When disconnecting a connector, first squeeze the mating connector housing halves tightly together to release the lock, and then press the lock claw and separate the connector.
      2. When disconnecting a connector, do not pull on the harnesses. Grasp the connector directly and separate it.
      3. Before connecting a connector, check that there are no deformations, damage, looseness or missing terminals.
      4. When connecting a connector, press firmly until it locks with a "click" sound.
      5. If checking a connector with an electrical tester, check the connector from the backside (harness side) using a mini test lead.
        NOTE:
        • As a waterproof connector cannot be checked from the backside, check it by connecting a sub-harness.
        • Do not damage the terminals by moving the inserted tester probe (mini test lead).
    3. CHECKING CONNECTORS
      GTY377221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Core Wire
      *b Looseness of Crimping
      *c Terminal Deformation
      *d Pull Lightly
      1. Checking when a connector is connected: Squeeze the connectors together to confirm that they are fully connected and locked.
      2. Checking when a connector is disconnected: Check by pulling the wire harness lightly from the backside of the connector. Look for unlatched terminals, missing terminals, loose crimps or broken conductor wires. Visually check for corrosion, metallic or foreign matter and water, and bent, rusted, overheated, contaminated or deformed terminals.
      3. Checking the contact pressure of the terminal: Prepare a spare male terminal. Insert it into a female terminal, and check for ample tension when inserting and after full engagement.
        NOTE:

        When testing a gold-plated female terminal, always use a gold-plated male terminal.

        GTY380585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. CONNECTOR TERMINAL REPAIR METHOD
      GTY362463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      1. If there is any foreign matter on the terminal, clean the contact point with compressed air or a cloth. Never rub the contact point using sandpaper as the plating may come off.
      2. If there is abnormal contact pressure, replace the female terminal. If the male terminal is gold-plated (gold color), use a gold-plated female terminal; if it is silver-plated (silver color), use a silver-plated female terminal.
      3. Damaged, deformed or corroded terminals should be replaced. If the terminal does not lock into the housing, the housing may have to be replaced.
    5. WIRE HARNESS HANDLING

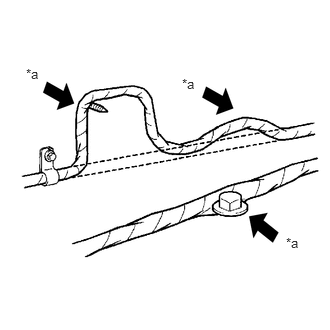

      GTY375895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Incorrect
      1. If removing a wire harness, check the wiring and clamps before proceeding so that it can be restored in the same way.
      2. Never twist, pull or slacken the wire harness more than necessary.
      3. The wire harness should never come into contact with any high temperature, rotating, moving, vibrating or sharp-edged parts. Avoid contact with panel edges, screw tips and other sharp items.
      4. When installing parts, never pinch the wire harness.
      5. Never cut or break the cover of the wire harness. If it is cut or broken, repair it with insulating tape or replace the wire harness.
  2. CHECK FOR OPEN CIRCUIT
    1. For an open circuit in the wire harness in Fig. 1, measure the resistance and voltage as follows:
      GTY384052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Fig. 1
      *1 SENSOR
      *2 ECU
      *a OPEN
    2. Check the resistance.
      1. Disconnect connectors A and C, and measure the resistance between the terminals of the connectors.

        Standard Resistance (Fig. 2)

        Tester Connection Condition Specified Condition
        Connector A terminal 1 - Connector C terminal 1 Always 10 kΩ or higher
        Connector A terminal 2 - Connector C terminal 2 Always Below 1 Ω

        HINT:

        Measure the resistance while lightly shaking the wire harness vertically and horizontally.

        1. If the results match the values specified above, an open circuit exists between terminal 1 of connector A and terminal 1 of connector C.
        GTY368947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Fig. 2
        *1 SENSOR
        *2 ECU
      2. Disconnect connector B and measure the resistance between the terminals of the connectors.
        GTY373634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Fig. 3
        *1 SENSOR
        *2 ECU

        Standard Resistance (Fig. 3)

        Tester Connection Condition Specified Condition
        Connector A terminal 1 - Connector B1 terminal 1 Always Below 1 Ω
        Connector B2 terminal 1 - Connector C terminal 1 Always 10 kΩ or higher
        1. If the results match the values specified above, an open circuit exists between terminal 1 of connector B2 and terminal 1 of connector C.
    3. Check the voltage.
      GTY383937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Fig. 4
      *1 SENSOR
      *2 ECU
      1. In a circuit in which voltage is applied to the ECU connector terminal, an open circuit can be checked by conducting a voltage check.

        With each connector still connected, measure the voltage between body ground and the following terminals (in this order): 1) terminal 1 of connector A, 2) terminal 1 of connector B, and 3) terminal 1 of connector C.

        Standard Voltage (Fig. 4)

        Tester Connection Condition Specified Condition
        Connector A terminal 1 - Body ground Ignition switch ON (IG) 5 V
        Connector B terminal 1 - Body ground Ignition switch ON (IG) 5 V
        Connector C terminal 1 - Body ground Ignition switch ON (IG) Below 1 V
        1. If the results match the values specified above, an open circuit exists in the wire harness between terminal 1 of connector B and terminal 1 of connector C.
  3. CHECK FOR SHORT CIRCUIT
    1. If a wire in the harness is shorted to ground (Fig. 5), locate the shorted section by measuring the resistance as follows:
      GTY369327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Fig. 5
      *1 SENSOR
      *2 ECU
      *a SHORT
    2. Check the resistance to body ground.
      GTY380763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Fig. 6
      *1 SENSOR
      *2 ECU
      1. Disconnect connectors A and C, and measure the resistance.

        Standard Resistance (Fig. 6)

        Tester Connection Condition Specified Condition
        Connector A terminal 1 - Body ground Always Below 1 Ω
        Connector A terminal 2 - Body ground Always 10 kΩ or higher

        HINT:

        Measure the resistance while lightly shaking the wire harness vertically and horizontally.

        1. If the results match the values specified above, a short circuit exists between terminal 1 of connector A and terminal 1 of connector C.
      2. Disconnect connector B and measure the resistance.
        GTY380792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Fig. 7
        *1 SENSOR
        *2 ECU

        Standard Resistance (Fig. 7)

        Tester Connection Condition Specified Condition
        Connector A terminal 1 - Body ground Always 10 kΩ or higher
        Connector B2 terminal 1 - Body ground Always Below 1 Ω
        1. If the results match the values specified above, a short circuit exists between terminal 1 of connector B2 and terminal 1 of connector C.
  4. CHECK AND REPLACE ECU
    NOTE:
    • The connector should not be disconnected from the ECU. Perform the inspection from the backside of the connector on the wire harness side.
    • When no measuring condition is specified, perform the inspection with the engine stopped and the ignition switch ON (IG).
    • Check that the connectors are fully seated. Check for loose, corroded or broken wires.
    1. First, check the ECU ground circuit. If it is faulty, repair it. If it is normal, the ECU could be faulty. Temporarily replace the ECU with a known good one and check if the problem symptoms occur. If the problem symptoms disappear, replace the original ECU.
      1. Measure the resistance between the ECU ground terminal and body ground.
        GTY372032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Ground

        Standard Resistance

        Below 1 Ω

      2. Disconnect the ECU connector. Check the ground terminals on the ECU side and wire harness side for bent terminals, corrosion or foreign matter. Lastly, check the contact pressure of the female terminals.

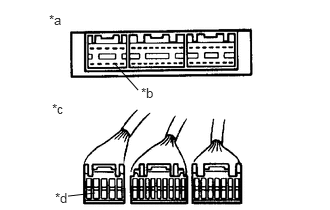

        GTY376399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (ECU)
        *b Ground
        *c Front view of wire harness connector
        (to ECU)
        *d Ground
