Parts Location [11/2023 - ]: Illustration

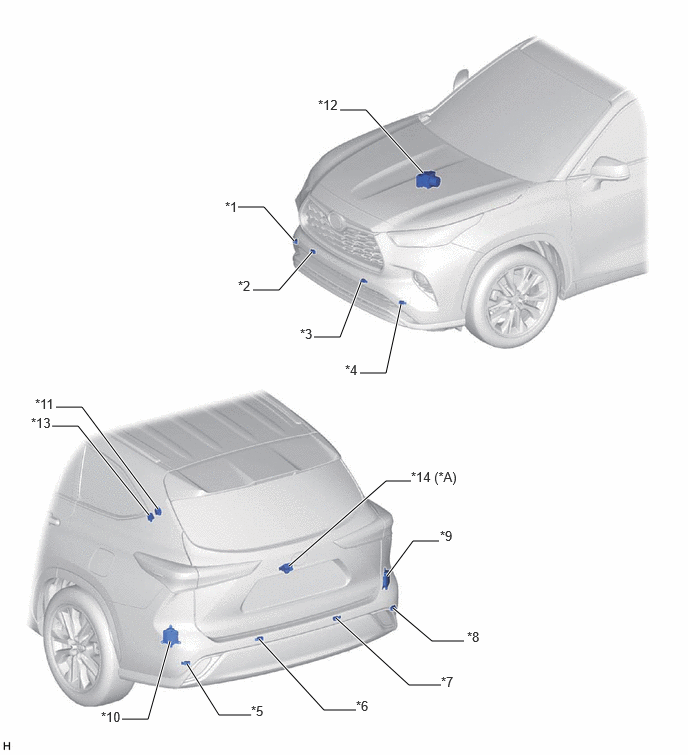

| *A | w/ Parking Assist Monitor System | - | - |
| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CENTER ULTRASONIC SENSOR RH |
| *3 | FRONT CENTER ULTRASONIC SENSOR LH | *4 | FRONT CORNER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR LH | *6 | REAR CENTER ULTRASONIC SENSOR LH |
| *7 | REAR CENTER ULTRASONIC SENSOR RH | *8 | REAR CORNER ULTRASONIC SENSOR RH |
| *9 | BLIND SPOT MONITOR SENSOR RH (A) | *10 | BLIND SPOT MONITOR SENSOR LH (B) |
| *11 | NO. 2 CLEARANCE WARNING BUZZER | *12 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU (for HV Model) - SKID CONTROL ECU (for Gasoline Model) |
| *13 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | *14 | REAR TELEVISION CAMERA ASSEMBLY |

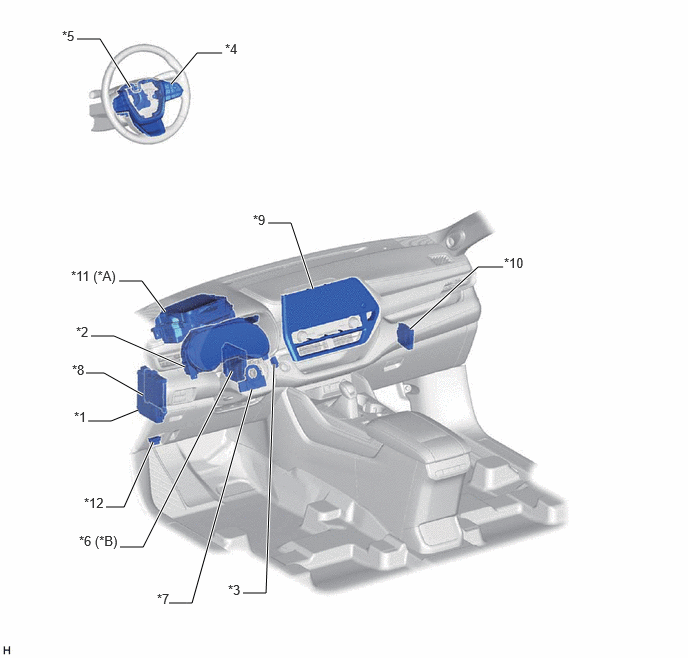

| *A | w/ Headup Display System | *B | w/ Panoramic View Monitor System |
| *1 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 3 FUSE |
*2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - RCTA OFF INDICATOR LIGHT - CLEARANCE SONAR OFF INDICATOR LIGHT |
| *3 | NO. 1 CLEARANCE WARNING BUZZER | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | PARKING ASSIST ECU |
| *7 | STEERING SENSOR | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *10 | CLEARANCE WARNING ECU ASSEMBLY |
| *11 | METER MIRROR SUB-ASSEMBLY | *12 | DLC3 |
