DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio / Video System - Circuit Tests & Symptom Tests (2 Of 2)
>>
Audio And Visual System
>>
USB Audio System Recognition/Play Error [12/2019 - 10/2022]
>>
Wiring Diagram
USB Audio System Recognition/Play Error [12/2019 - 10/2022]: Wiring Diagram

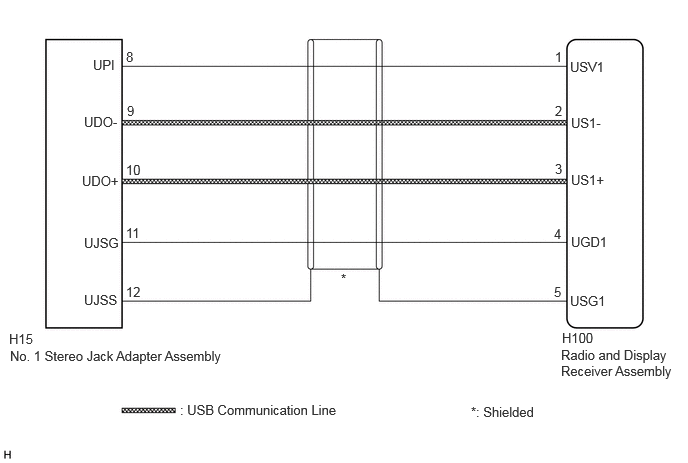

Fig 1: USB Audio System Recognition/Play Error [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
