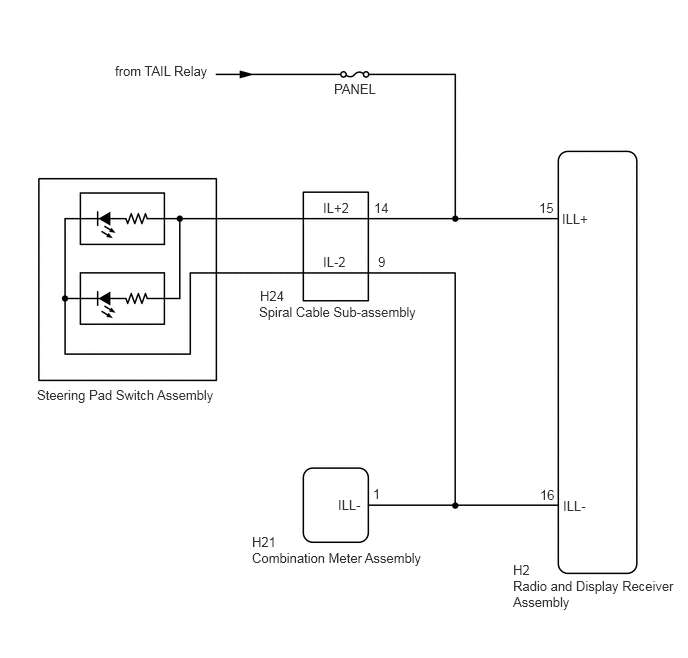

Illumination Circuit [12/2019 - 10/2022]: Wiring Diagram

GTY847591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
