Microphone Circuit [12/2019 - 10/2022]: Wiring Diagram

w/o Telematics Transceiver

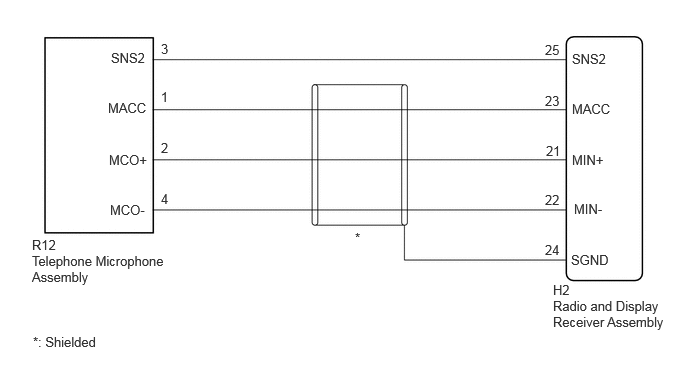

Fig 1: w/o Telematics Transceiver [12/2019 - 10/2022]
GTY886709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Telematics Transceiver

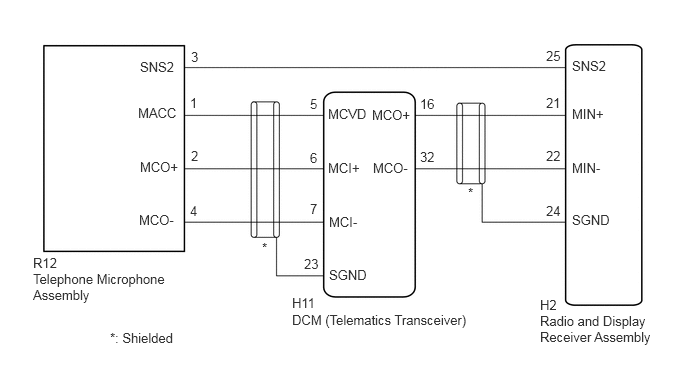

Fig 2: w/ Telematics Transceiver [12/2019 - 10/2022]
GTY940298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
