Microphone Circuit [10/2022 - ]: Wiring Diagram

w/ DCM (Telematics Transceiver)

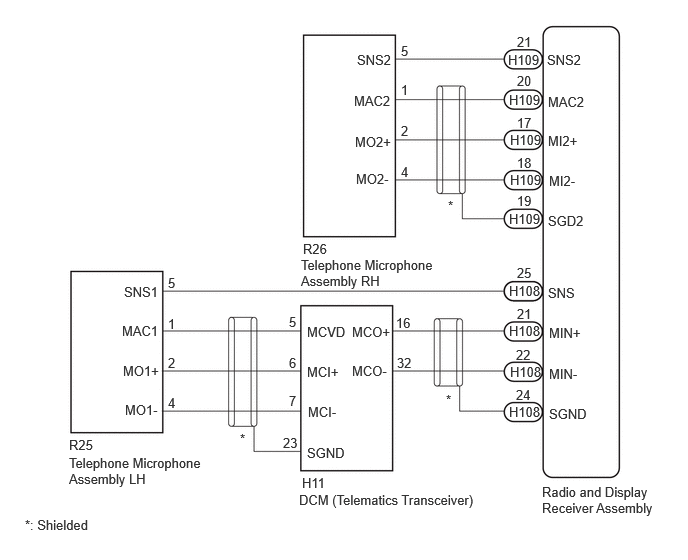

Fig 1: w/ DCM (Telematics Transceiver) [10/2022 - ]
GTY1120067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o DCM (Telematics Transceiver)

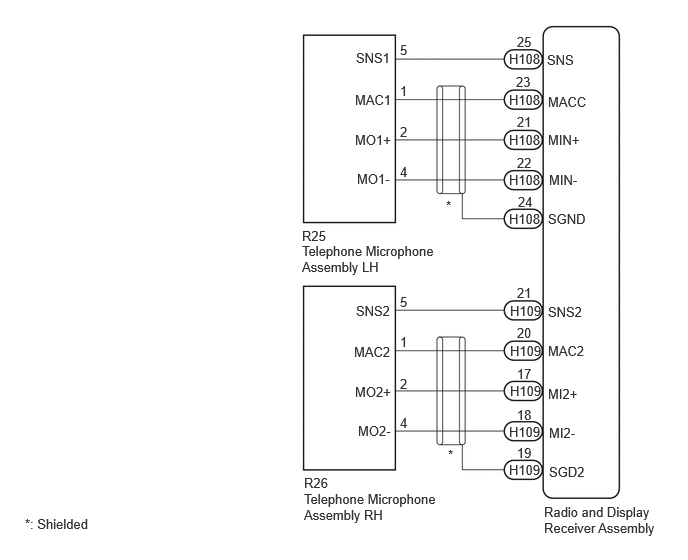

Fig 2: w/o DCM (Telematics Transceiver) [10/2022 - ]
GTY1119624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
