DTC B15C3-71: Speaker Output Short Actuator Stuck [10/2022 - 11/2023]: Wiring Diagram

w/o "JBL" Sound System

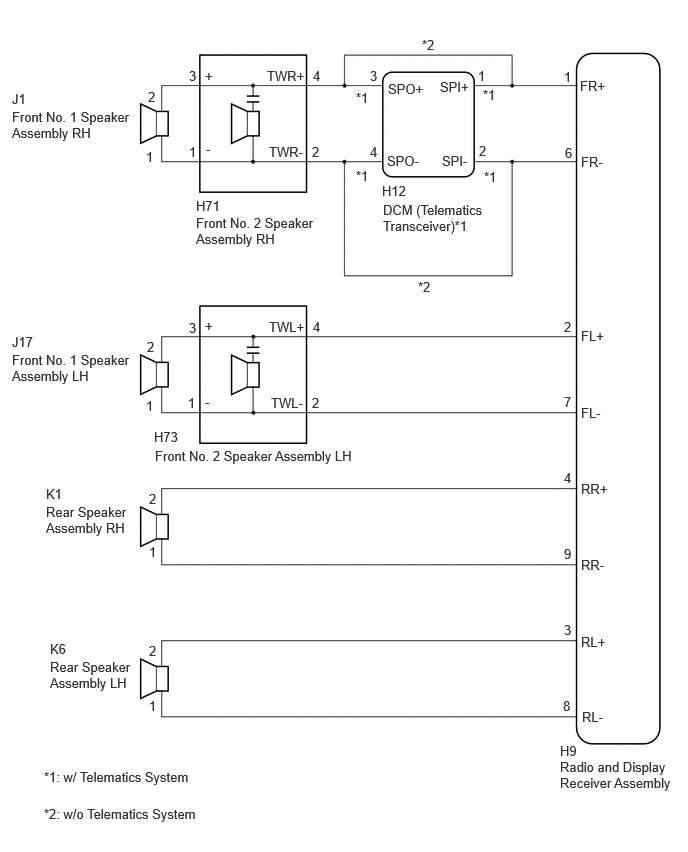

GTY1115211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ "JBL" Sound System

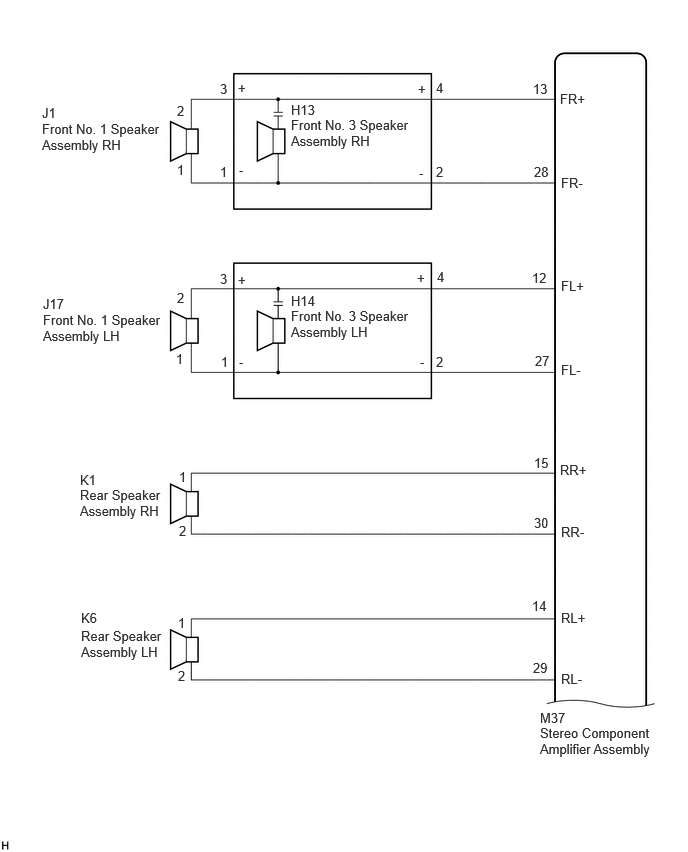

GTY1110913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

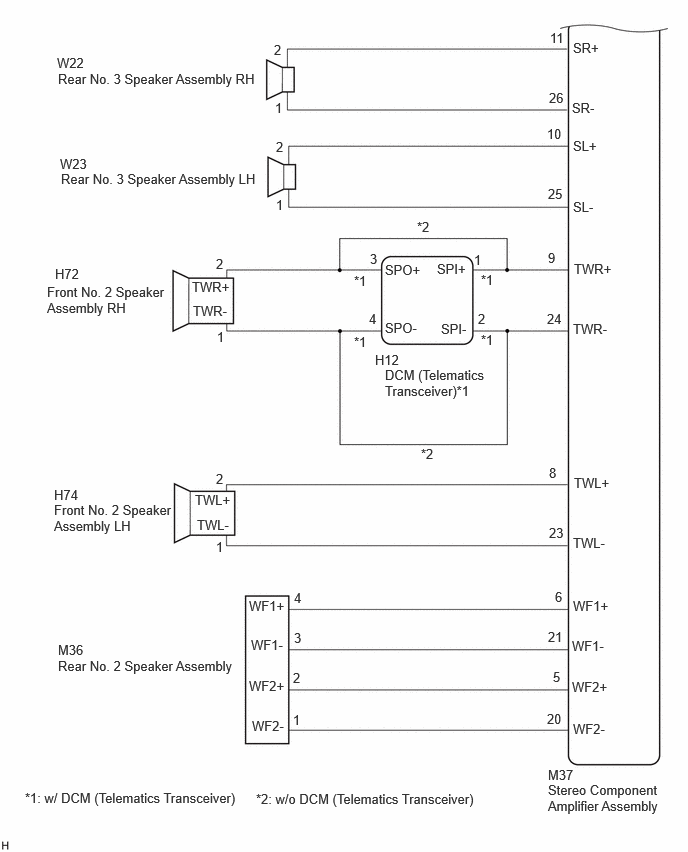

GTY1120688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
