DTC B15C3-71: Speaker Output Short Actuator Stuck [11/2023 - ]: Wiring Diagram

w/o "JBL" Sound System

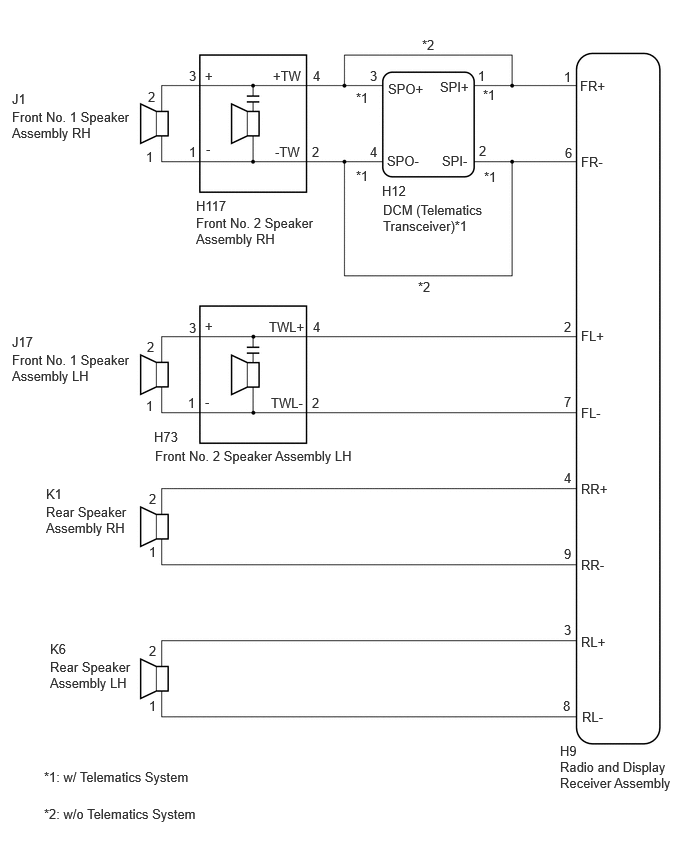

GTY1179859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ "JBL" Sound System

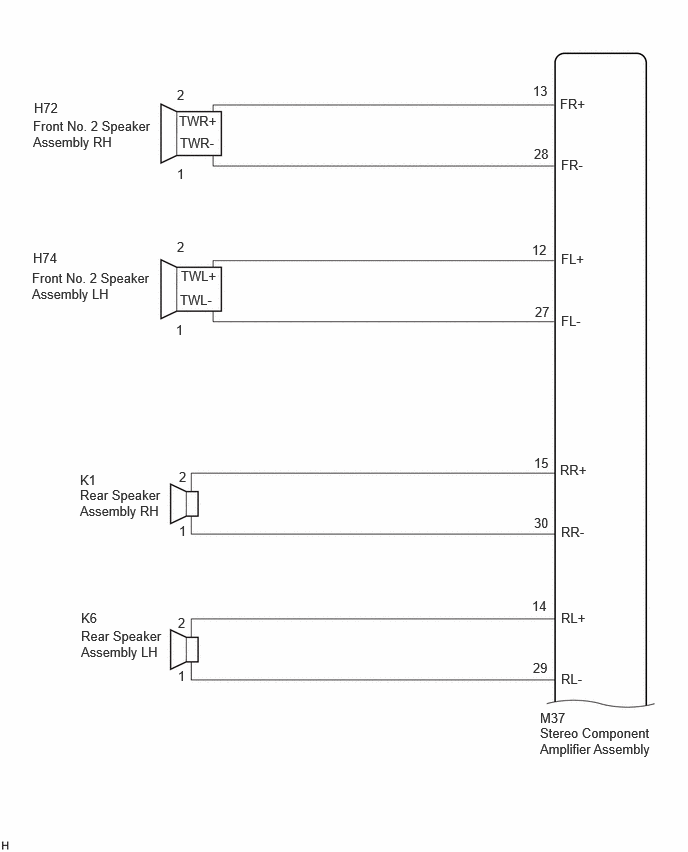

GTY1179727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

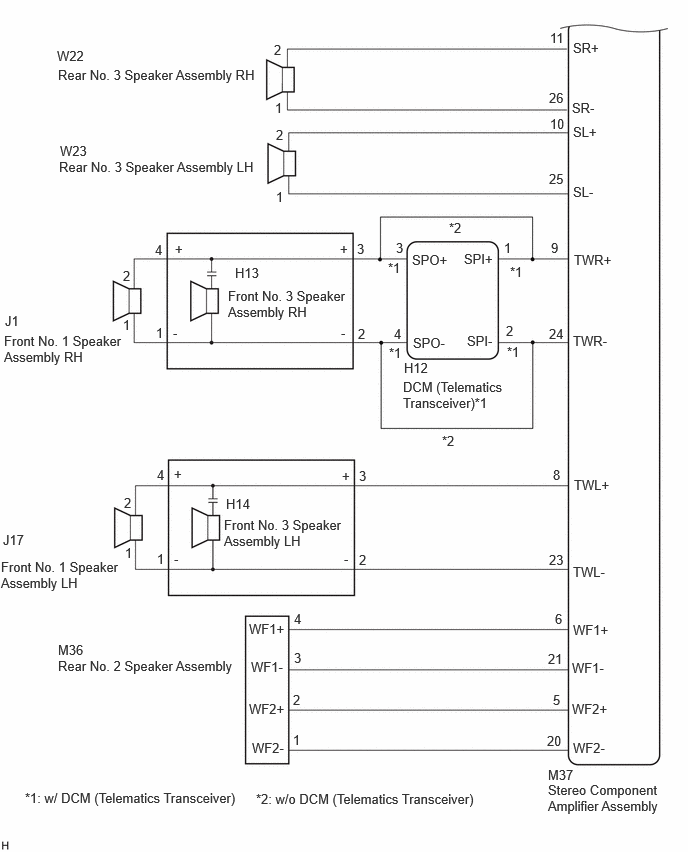

GTY1179999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
