DTC C1622-87: Rear Camera Image Signal Missing Message [10/2022 - ]: Wiring Diagram

w/ Parking Assist Monitor System

GTY1121236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

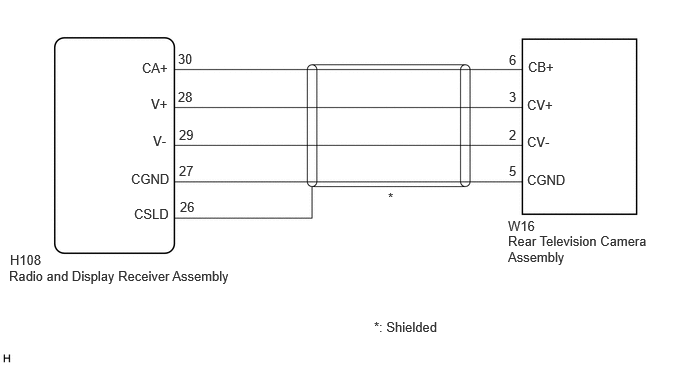

w/ Rear View Monitor System

GTY1109934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
