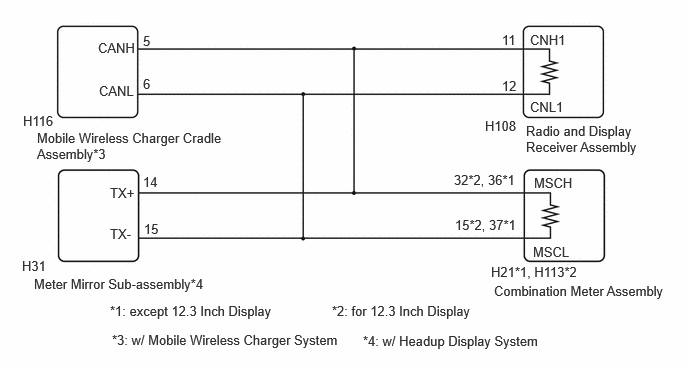

DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D1-87: Lost Local Communication with HUD Missing Message; DTC U11D3-87: Lost Local Communication with Qi Missing Message [11/2023 - ]: Wiring Diagram

GTY1180348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
