Satellite Radio Broadcast cannot be Received [10/2022 - 11/2024]: Procedure

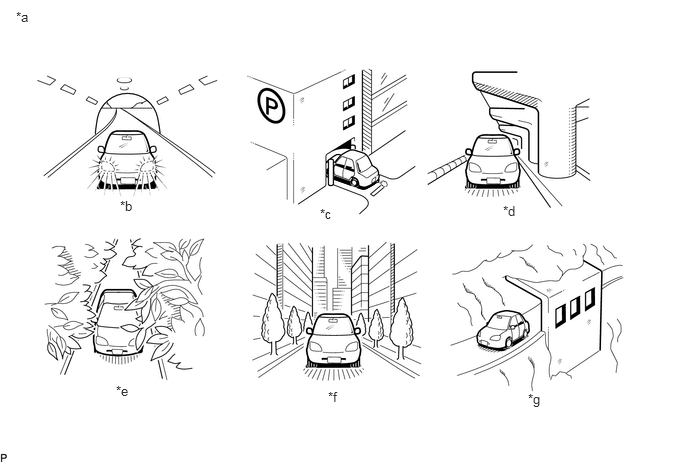

1. Check if the vehicle is in an environment where reception is difficult due to something blocking the area above the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Example	*b	In a tunnel
   *c	In a building	*d	Under an overpass
   *e	In a forest or on tree-lined path	*f	Between tall buildings
   *g	Under a cliff or overhang	-	-

   HINT:

   If the area above the vehicle is blocked, such as when in a building or tunnel, reception may not be possible.

   OK

   Area above vehicle is not blocked.

   Result

   Proceed to
   OK
   NG

Result:

NG

END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

Result:

OK

See step  2

1. Check if CH001 (free broadcast) can be received.

   OK

   CH001 can be received.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  6

Result:

OK

See step  3

1. Check the display screen.

   Result

   Result	Proceed to
   "SAT Ch Unauth" is displayed.	A
   "-----" is displayed.	B
   None of the displays above are shown.	C

Result:

B

THERE IS NO SONG/PROGRAM TITLE OR ARTIST NAME/FEATURE ASSOCIATED WITH CHANNEL AT THAT TIME

Result:

C

See step  6

Result:

A

See step  4

1. Check if the pay-type contract has been extended, or if the contract period has ended.

   OK

   Pay-type contract is valid.

   Result

   Proceed to
   OK
   NG

Result:

NG

TO RECEIVE PAY-TYPE BROADCASTS, CONTRACT MUST BE MADE WITH SATELLITE RADIO COMPANY

Result:

OK

See step  5

1. Perform activation refresh by referring to the satellite radio company website (http://www.siriusxm.com).

   OK

   Malfunction disappears.

   HINT:

   The SiriusXM radio ID that is necessary to perform activation refresh is displayed when CH000 is selected on the satellite radio.

   Result

   Proceed to
   OK
   NG

Result:

OK

END

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Refer to PROBLEM SYMPTOMS TABLE [10/2022 - 11/2024]

1. Check the display screen.

   Result

   Result	Proceed to
   "SAT Ck Antenna" is displayed.	A
   "SAT No Signal" is displayed.	B
   "Loading" is displayed.
   "SAT Ch Off Air" is displayed.	C
   After "SAT Ch Unavail" is displayed, display automatically switches to CH001.	D
   None of the displays above are shown.	E

Result:

B

END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

Result:

C

CHANNEL IS CURRENTLY NOT BEING BROADCASTED. BROADCAST CAN BE LISTENED TO OR VIEWED WHEN IT IS BACK ON AIR. (CHECK WITH RADIO STATION)

Result:

D

CHANNEL BROADCAST HAS ENDED (CHECK WITH RADIO STATION)

Result:

E

See step  11

Result:

A

See step  7

See step  4

Result

Result:

NG

REPLACE NO. 4 ANTENNA CORD SUB-ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - 11/2024]

Result:

OK

See step  8

See step  5

Result

Result:

NG

REPLACE NO. 3 ANTENNA CORD SUB-ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - 11/2024]

Result:

OK

See step  9

See step  6

Result

Result:

NG

REPLACE ANTENNA CORD SUB-ASSEMBLY

Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - 11/2024]

Result:

OK

See step  10

1. Replace the roof antenna assembly with a new or known good one and check if radio broadcasts can be received normally.

   Refer to REMOVAL [12/2019 - ]

   OK

   Radio broadcasts can be received normally.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (ROOF ANTENNA ASSEMBLY IS DEFECTIVE)

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Refer to PROBLEM SYMPTOMS TABLE [10/2022 - 11/2024]

1. Check if CH000 is currently selected.

   OK

   CH000 is selected.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (CH000 HAS NO SOUND. SELECT ANOTHER CHANNEL.)

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Refer to PROBLEM SYMPTOMS TABLE [10/2022 - 11/2024]
