Parts Location [12/2019 - 10/2022]: Illustration

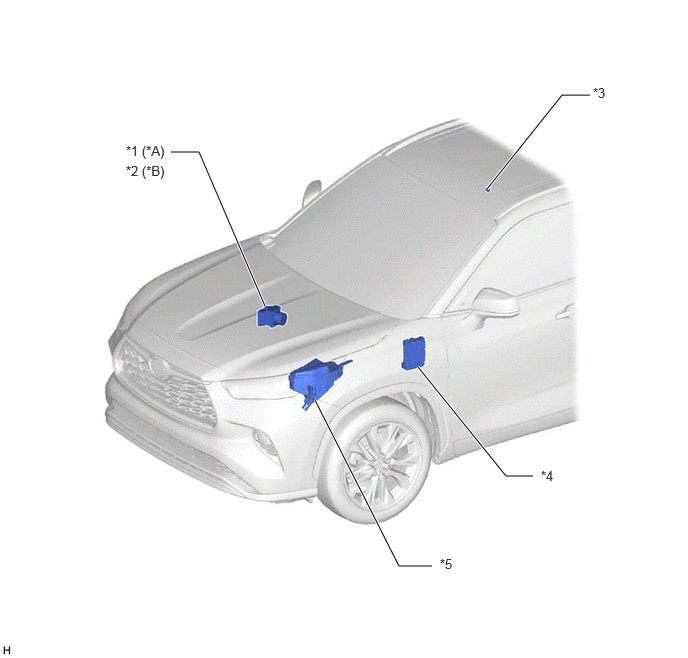

| *A | for HV Model | *B | for Gasoline Model |
| *1 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *3 | TELEPHONE MICROPHONE ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE - DCM FUSE - PANEL FUSE - METER-IG2 FUSE |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - AMP NO. 1 FUSE - RADIO NO. 2 FUSE |
- | - |
| *A | w/ Telematics Transceiver | - | - |

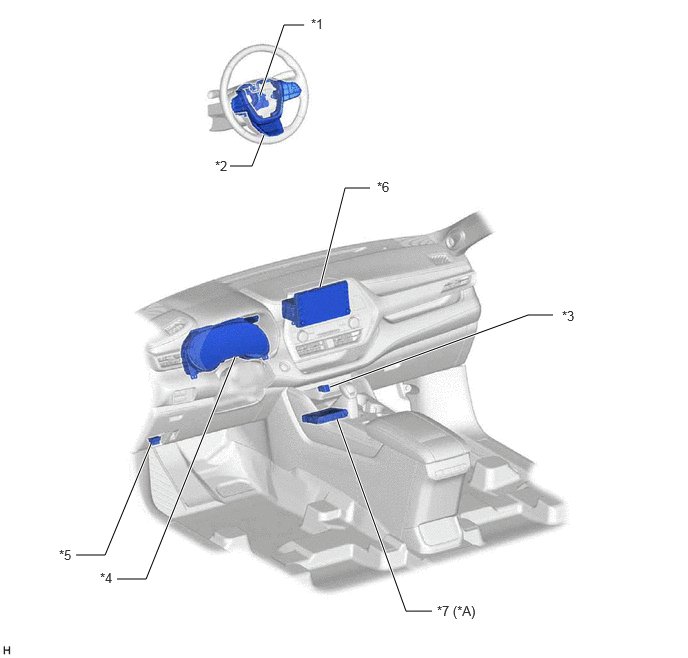

| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | DLC3 | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | - | - |

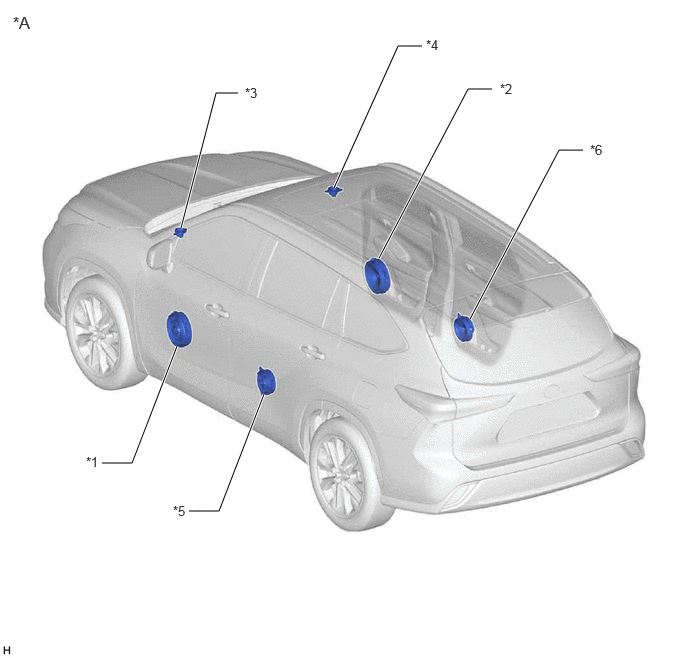

| *A | w/o Stereo Component Amplifier Assembly | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | REAR SPEAKER ASSEMBLY RH |

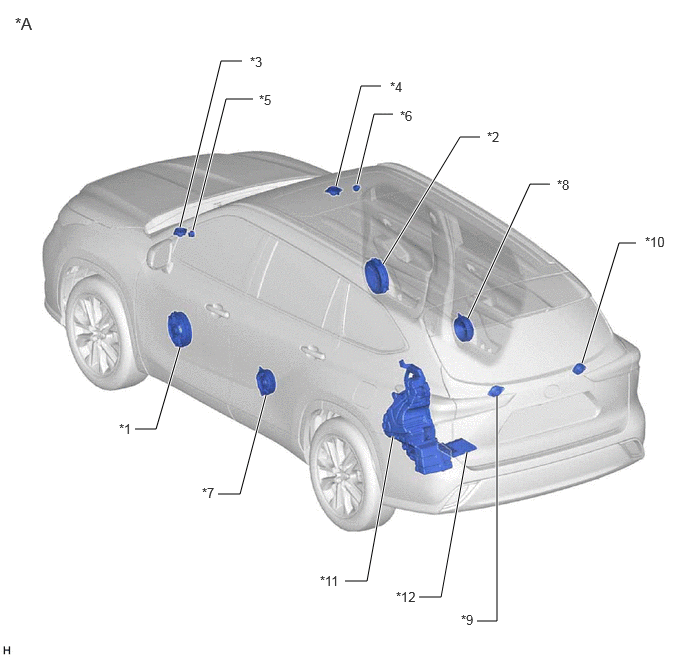

| *A | w/ Stereo Component Amplifier Assembly | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | FRONT NO. 3 SPEAKER ASSEMBLY LH | *6 | FRONT NO. 3 SPEAKER ASSEMBLY RH |
| *7 | REAR SPEAKER ASSEMBLY LH | *8 | REAR SPEAKER ASSEMBLY RH |
| *9 | REAR NO. 3 SPEAKER ASSEMBLY LH | *10 | REAR NO. 3 SPEAKER ASSEMBLY RH |
| *11 | REAR NO. 2 SPEAKER ASSEMBLY | *12 | STEREO COMPONENT AMPLIFIER ASSEMBLY |

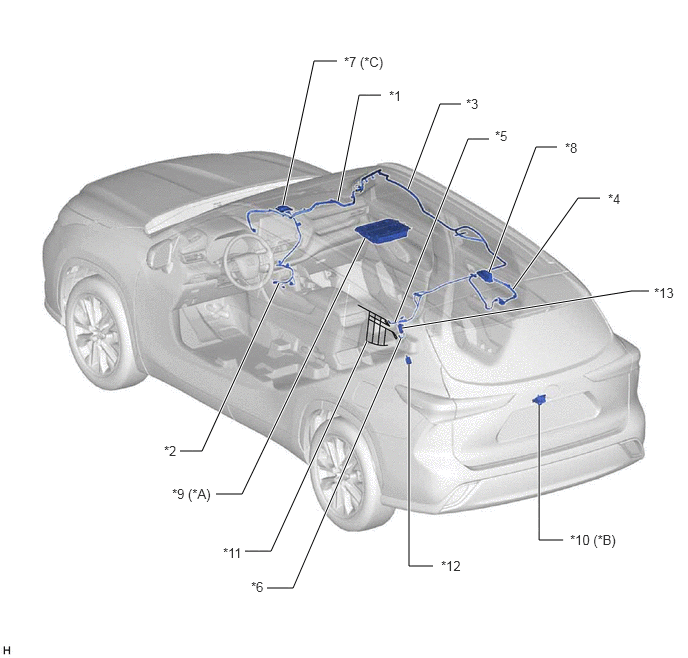

| *A | w/ Rear Seat Entertainment System | *B | w/ Rear View Monitor System or Parking Assist Monitor System |
| *C | w/ Navigation Antenna Assembly | - | - |
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *3 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 5 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 6 ANTENNA CORD SUB-ASSEMBLY |
| *7 | NAVIGATION ANTENNA ASSEMBLY - GPS |
*8 | ROOF ANTENNA ASSEMBLY - SiriusXM (w/ SXM Function) - AM - FM MAIN |
| *9 | TELEVISION DISPLAY ASSEMBLY | *10 | REAR TELEVISION CAMERA ASSEMBLY |
| *11 | WINDOW GLASS ANTENNA WIRE - FM SUB |
*12 | RADIO SETTING CONDENSER |
| *13 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | - | - |
