Audio / Video System - Diagnostics - Introduction (1 Of 2)
>>
Audio And Visual System
>>

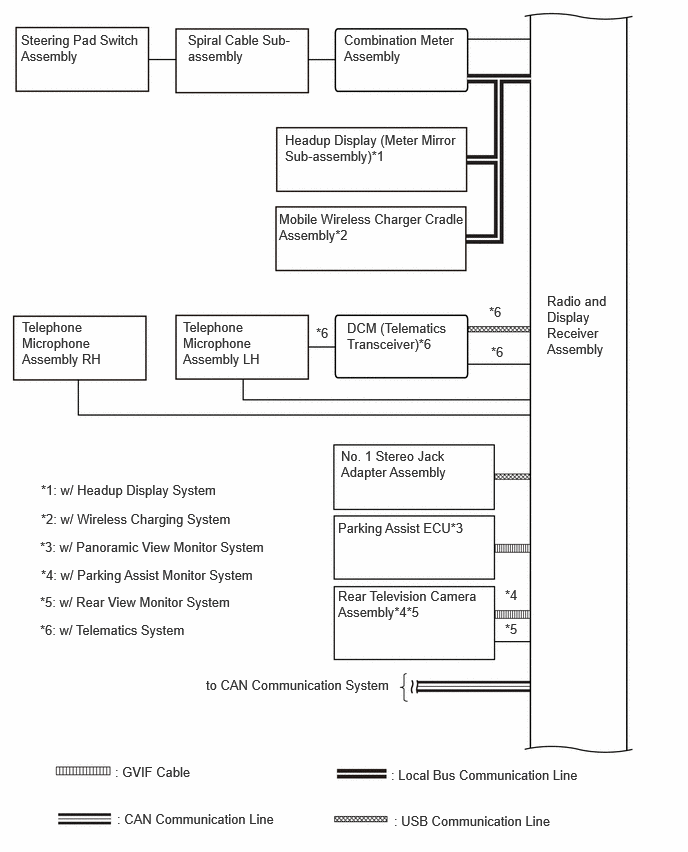

System Diagram [11/2023 - ]
>>
System Diagram [11/2023 - ]
System Diagram [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

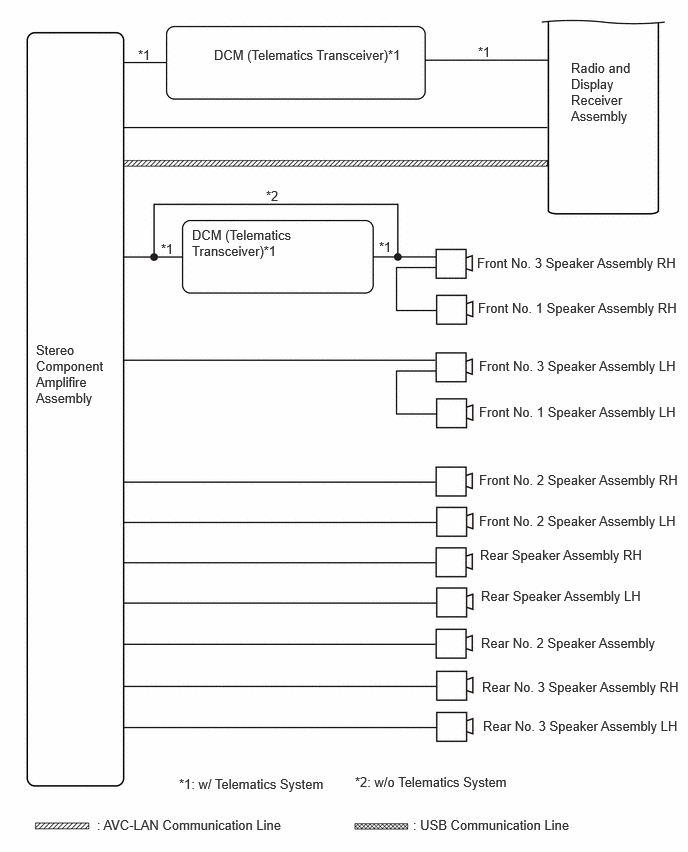

w/ "JBL" Sound System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

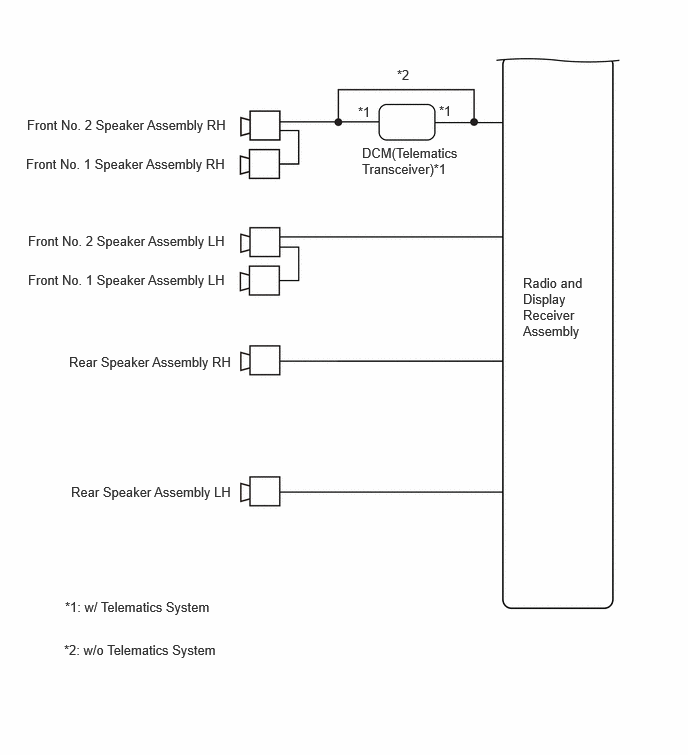

w/o "JBL" Sound System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
