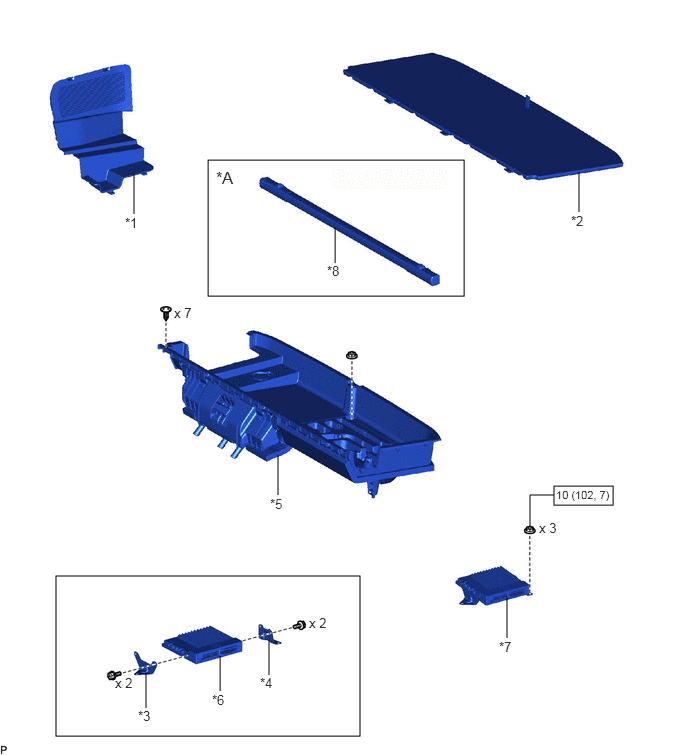

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Tonneau Cover | - | - |
| *1 | BATTERY SERVICE HOLE COVER | *2 | DECK BOARD ASSEMBLY |
| *3 | NO. 1 AMPLIFIER BRACKET | *4 | NO. 2 AMPLIFIER BRACKET |
| *5 | REAR DECK FLOOR BOX | *6 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *7 | STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET | *8 | TONNEAU COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
