Removal [12/2019 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

  2. REMOVE REAR DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  4. REMOVE REAR SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

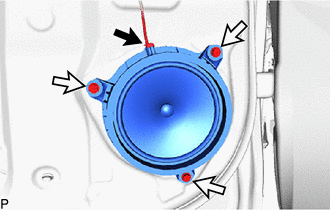

    1. Disconnect the connector.
      GTY916544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.

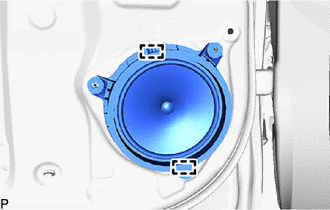

    3. Disengage the 2 guides to remove the rear speaker assembly.
      GTY916543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
