Components [12/2019 - ]

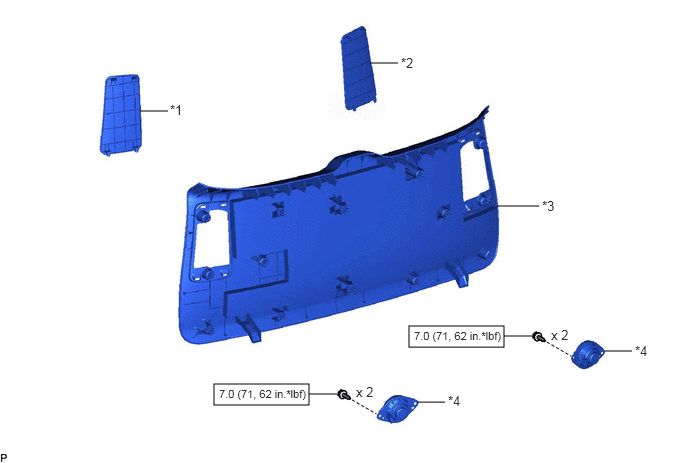

Fig 1: Back Door Speaker Replacement Components With Torque Specifications
GTY854424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR SERVICE HOLE COVER LH *2 BACK DOOR SERVICE HOLE COVER RH
*3 BACK DOOR TRIM PANEL ASSEMBLY *4 REAR NO. 3 SPEAKER ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
