Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

  4. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.
    1. Remove the 2 bolts.

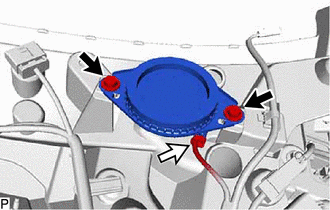

      GTY943459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the rear No. 3 speaker assembly.
