Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE TELEVISION BASE

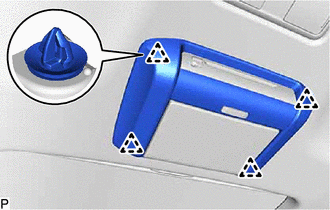

    1. Disengage the 4 clips to remove the television base.
      GTY916497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TELEVISION DISPLAY ASSEMBLY

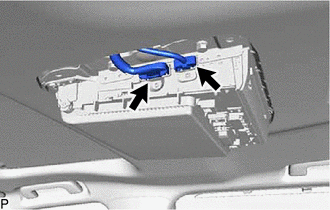

    1. Disconnect the 2 connectors.
      GTY943448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

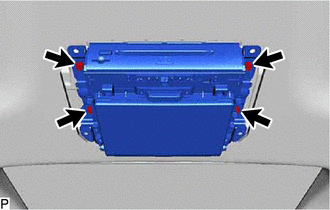

    2. Remove the 4 bolts.
      GTY916496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

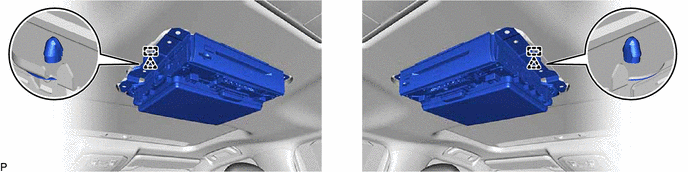

    3. Disengage the 2 clips and 2 guides to remove the television display assembly.
      GTY916495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
