Removal [11/2024 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. w/o Manual (SOS) Switch:
      GTY1249959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector and disengage the 2 claws.
      2. Disengage the 6 clamps and remove the antenna cord sub-assembly.

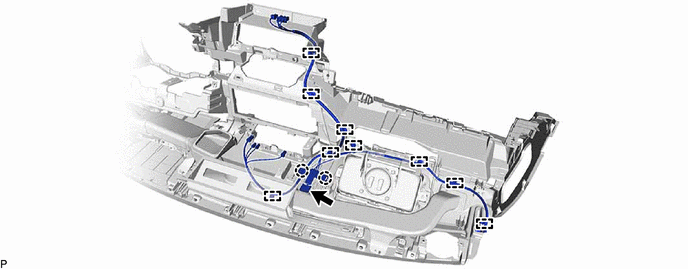

    2. w/ Manual (SOS) Switch:
      GTY1249960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector and disengage the 2 claws.
      2. Disengage the 9 clamps and remove the antenna cord sub-assembly.
  4. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  5. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Normal Roof)
    1. Remove the adhesive tape from the roof headlining assembly.
      GTY1120746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Remove the No. 3 antenna cord sub-assembly from the roof headlining assembly.

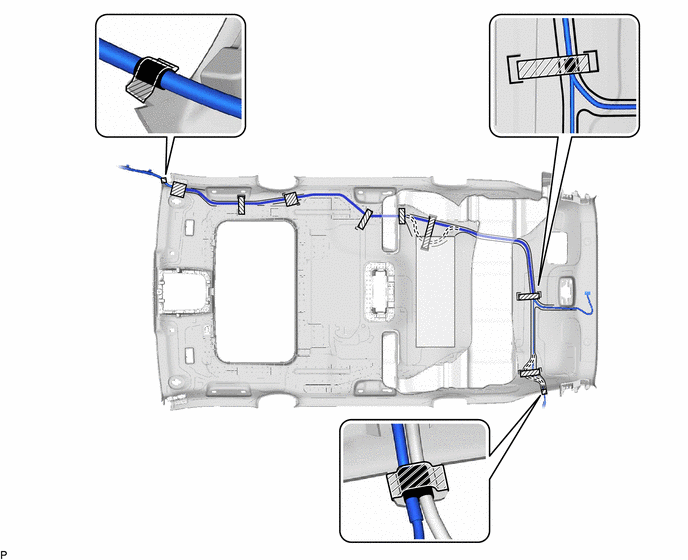

  6. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Moon Roof)
    1. Remove the adhesive tape from the roof headlining assembly.
      GTY1249798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Remove the No. 3 antenna cord sub-assembly from the roof headlining assembly.
  7. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Panoramic Moon Roof)
    1. Remove the adhesive tape from the roof headlining assembly.
      GTY1122197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Remove the No. 3 antenna cord sub-assembly from the roof headlining assembly.

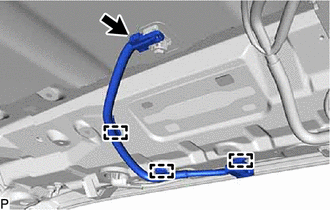

  8. REMOVE NO. 4 ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the connector.
      GTY1249962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps and remove the No. 4 antenna cord sub-assembly.
