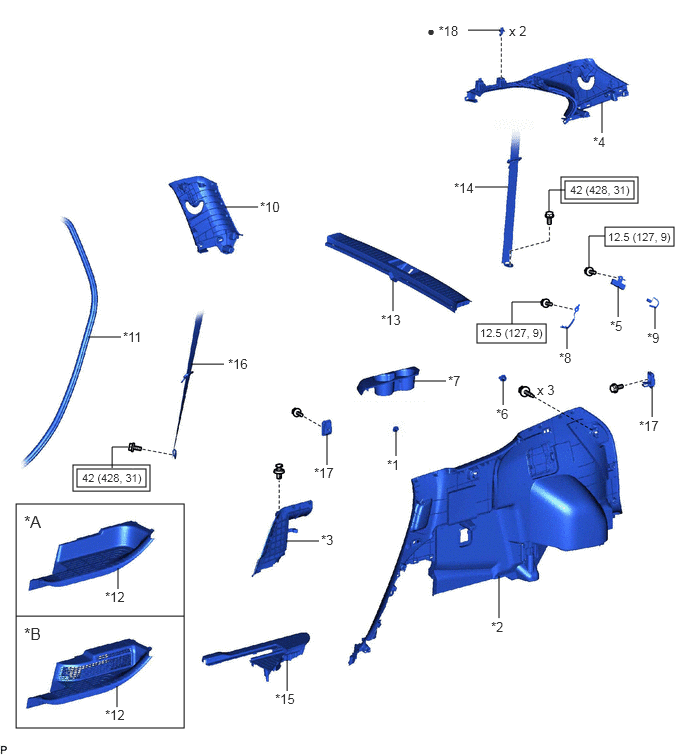

| *A |
for Gasoline Model |
*B |
for HV Model |
| *1 |
DECK TRIM POCKET COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 |
FRONT DECK SIDE TRIM COVER LH |
*4 |
INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *5 |
NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
*6 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *7 |
NO. 2 DECK SIDE TRIM COVER |
*8 |
NO. 5 ANTENNA CORD SUB-ASSEMBLY |
| *9 |
NO. 6 ANTENNA CORD SUB-ASSEMBLY |
*10 |
QUARTER PILLAR GARNISH LH |
| *11 |
REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*12 |
REAR DOOR SCUFF PLATE LH |
| *13 |
REAR FLOOR FINISH PLATE |
*14 |
REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH |
| *15 |
REAR OUTER SEAT TRACK BRACKET COVER LH |
*16 |
REAR SEAT OUTER BELT ASSEMBLY LH |
| *17 |
ROPE HOOK |
*18 |
ROOF SIDE GARNISH CLIP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
