Removal [10/2022 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

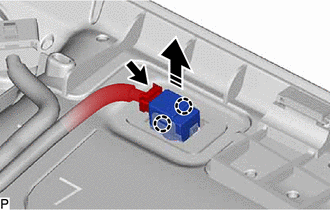

    1. Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.
      GTY1119865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
    3. The orientation for the RH side is the opposite of the LH side.
