Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE BACK-UP BATTERY

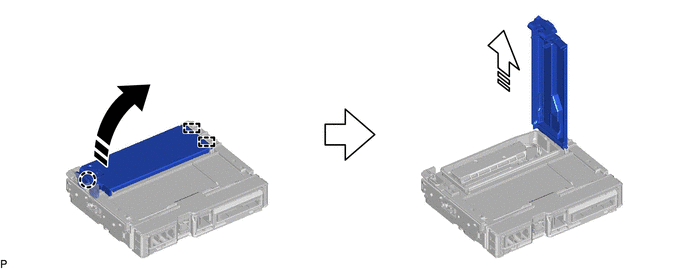

    1. Disengage the claw and 2 guides as shown in the illustration to remove the transceiver cover.
      GTY873344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

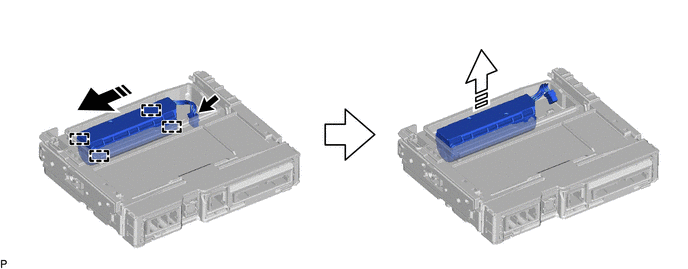

    2. Disconnect the connector.
      GTY936595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
    3. Disengage the 4 guides and remove the back-up battery as shown in the illustration.
