Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE BACK-UP BATTERY

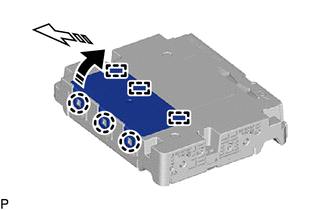

    1. Disengage the 3 claws and 3 guides as shown in the illustration to remove the transceiver cover.
      GTY1120333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

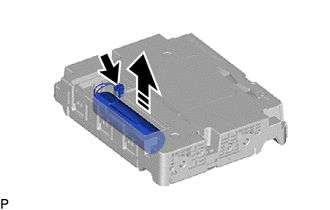

    2. Disconnect the connector.
      GTY1121179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the back-up battery as shown in the illustration.
