Components [12/2019 - ]

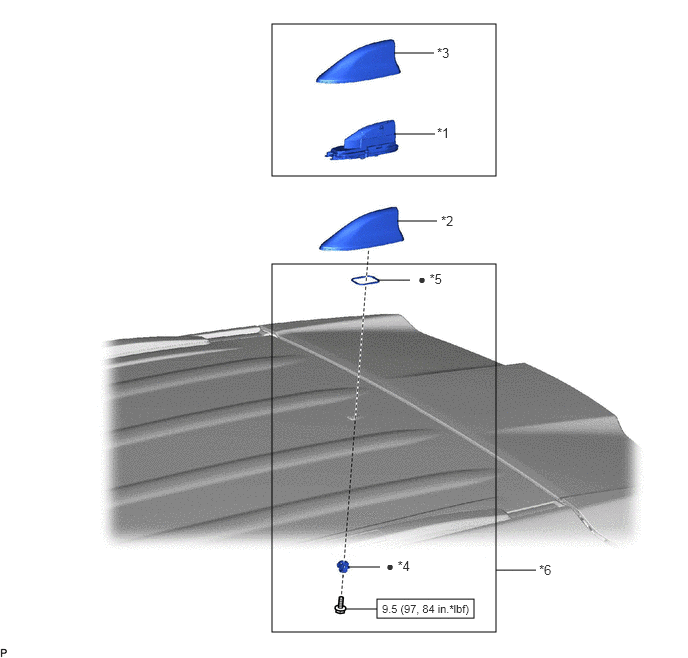

Fig 1: Telephone And GPS Antenna (For Roof Side) Replacement Components With Torque Specifications
GTY839963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TELEPHONE AND GPS ANTENNA ASSEMBLY *2 TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER
*3 COVER *4 WASHER AND HOLDER
*5 SEAL *6 ROOF ANTENNA HOUSING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
