Removal [12/2019 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER

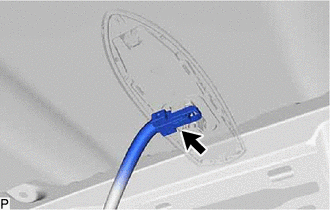

    1. Disconnect the connector.
      GTY916646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

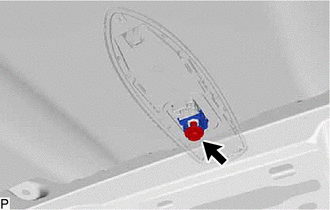

    2. Remove the bolt and washer and holder.
      GTY916645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

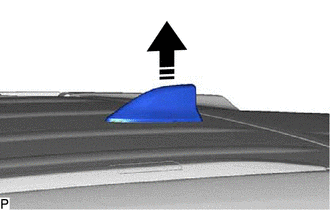

    3. Remove the telephone and GPS antenna assembly with cover as shown in the illustration.
      GTY854901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY

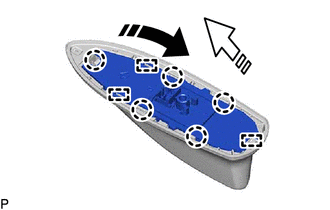

    1. Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 claws and 2 guides.
      GTY857946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the telephone and GPS antenna assembly.
    3. When reusing the telephone and GPS antenna assembly:
      1. Remove the seal.
        GTY943483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
