Installation [12/2019 - ]: Procedure

  1. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY
    1. When reusing the telephone and GPS antenna assembly:
      1. Install a new seal.

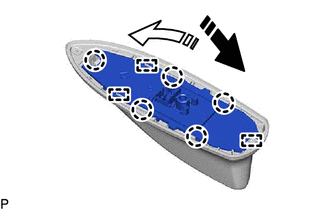

    2. Push the telephone and GPS antenna assembly in the direction indicated by the arrow (1) shown in the illustration to engage the guide.
      GTY866668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    3. Push the telephone and GPS antenna assembly in the direction indicated by the arrow (2) shown in the illustration to engage the 2 guides and 5 claws to install the telephone and GPS antenna assembly.
  2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER

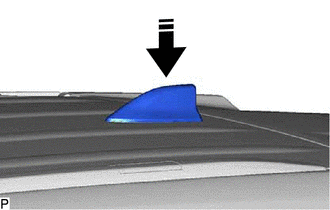

    1. Temporarily install the telephone and GPS antenna assembly with cover as shown in the illustration.
      GTY871890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install a new washer and holder.
    3. Install the telephone and GPS antenna assembly with cover with the bolt.

      Torque: 9.5 N.m (97 kgf/cm, 84 in.lbf)

    4. Connect the connector.
  3. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
