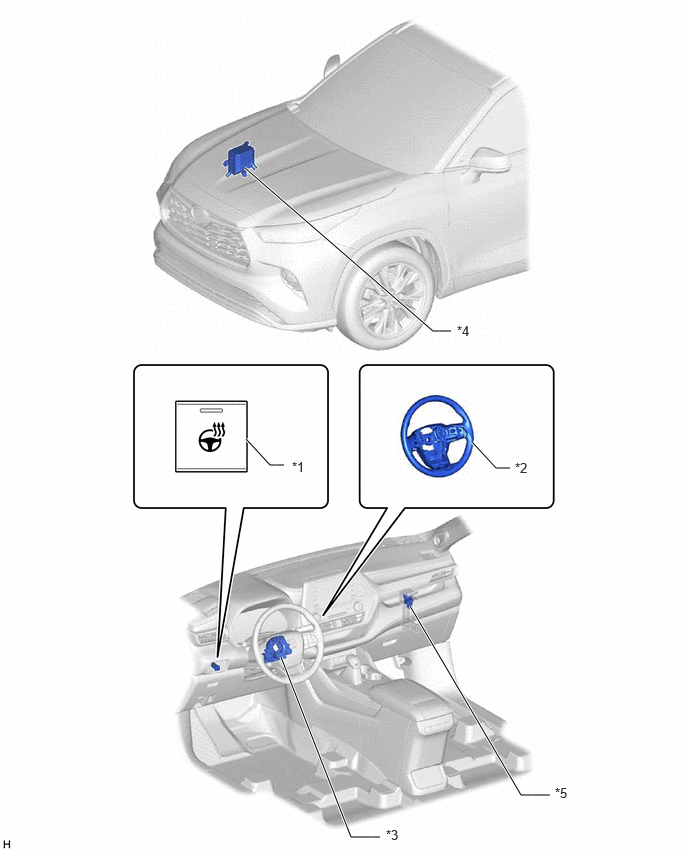

Parts Location [11/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING HEATER SWITCH	*2	STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT
*3	SPIRAL CABLE SUB-ASSEMBLY	*4	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE - ECU-IGP NO. 3 FUSE
*5	NO. 7 RELAY BLOCK - STRG HTR RELAY	-	-
