Heated Steering Wheel System - Inspection
>>
Heated Steering Wheel System
>>
System Diagram [12/2019 - 11/2023]
>>
System Diagram [12/2019 - 11/2023]
System Diagram [12/2019 - 11/2023]
SYSTEM DIAGRAM

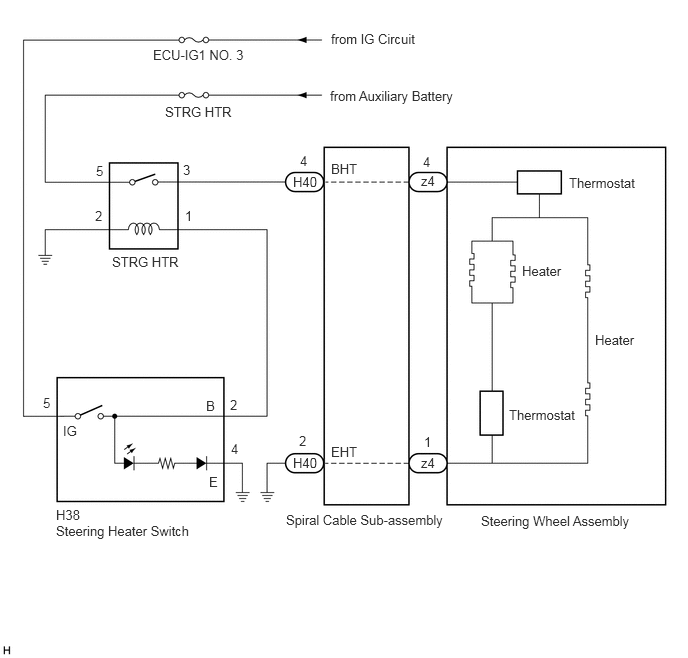

Fig 1: Heated Steering Wheel System Diagram [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
