Heated Steering Wheel System - Inspection
>>
Heated Steering Wheel System
>>
System Diagram [11/2023 - ]
>>
System Diagram [11/2023 - ]
System Diagram [11/2023 - ]
SYSTEM DIAGRAM

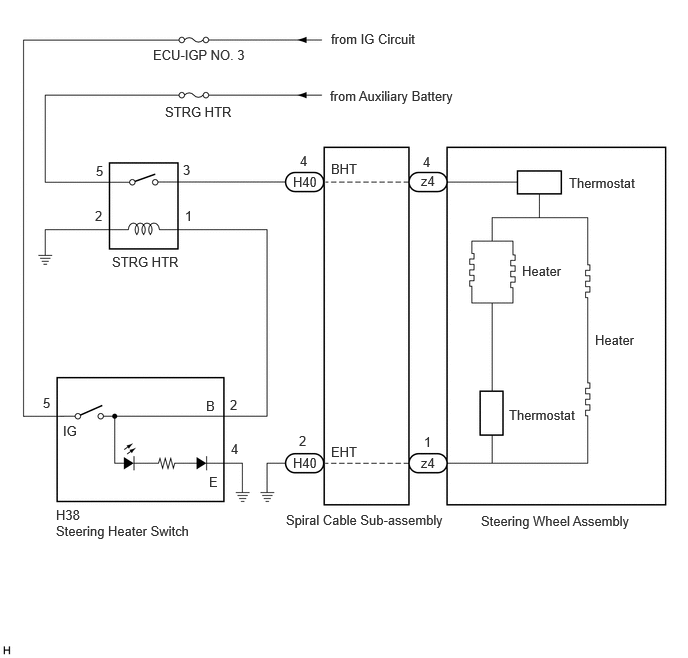

Fig 1: Heated Steering Wheel System Diagram [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
