Tire Pressure Sensor Registration

NOTE: When a tire, wheel, tire pressure monitor valve sub-assembly and/or tire pressure monitor ECU are replaced, the transmitter ID needs to be registered in the tire pressure monitor ECU. To perform this procedure, a Toyota hand-held tester must be used.

Set the pressure of all tires (including spare tire) to the pressure specified on the tire and loading information label.
Connect the hand-held tester to DLC3. See Fig 1.
Turn the ignition switch to the ON position.
Select REGISTER from the UTILITY menu. See Fig 2.
Enter the transmitter ID(s) using the hand-held tester and transmit it to the tire pressure monitor ECU.
Set ID transmission condition to "ID Registration is complete".

NOTE: If steps 4- 6 are not completed within 5 minutes, the mode will return to the normal operation mode.

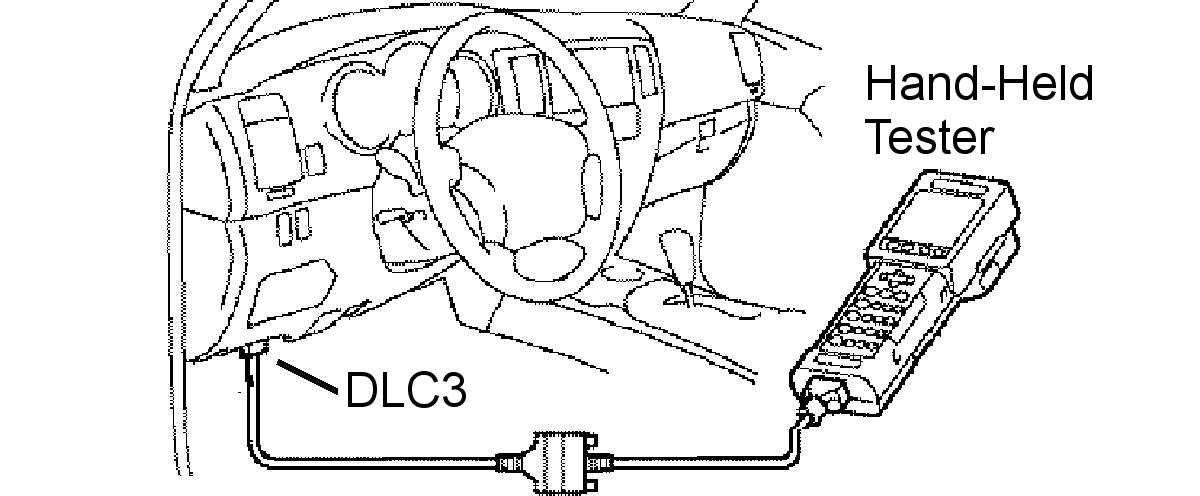

Fig 1: Connecting Hand-Held Tester To DLC3

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

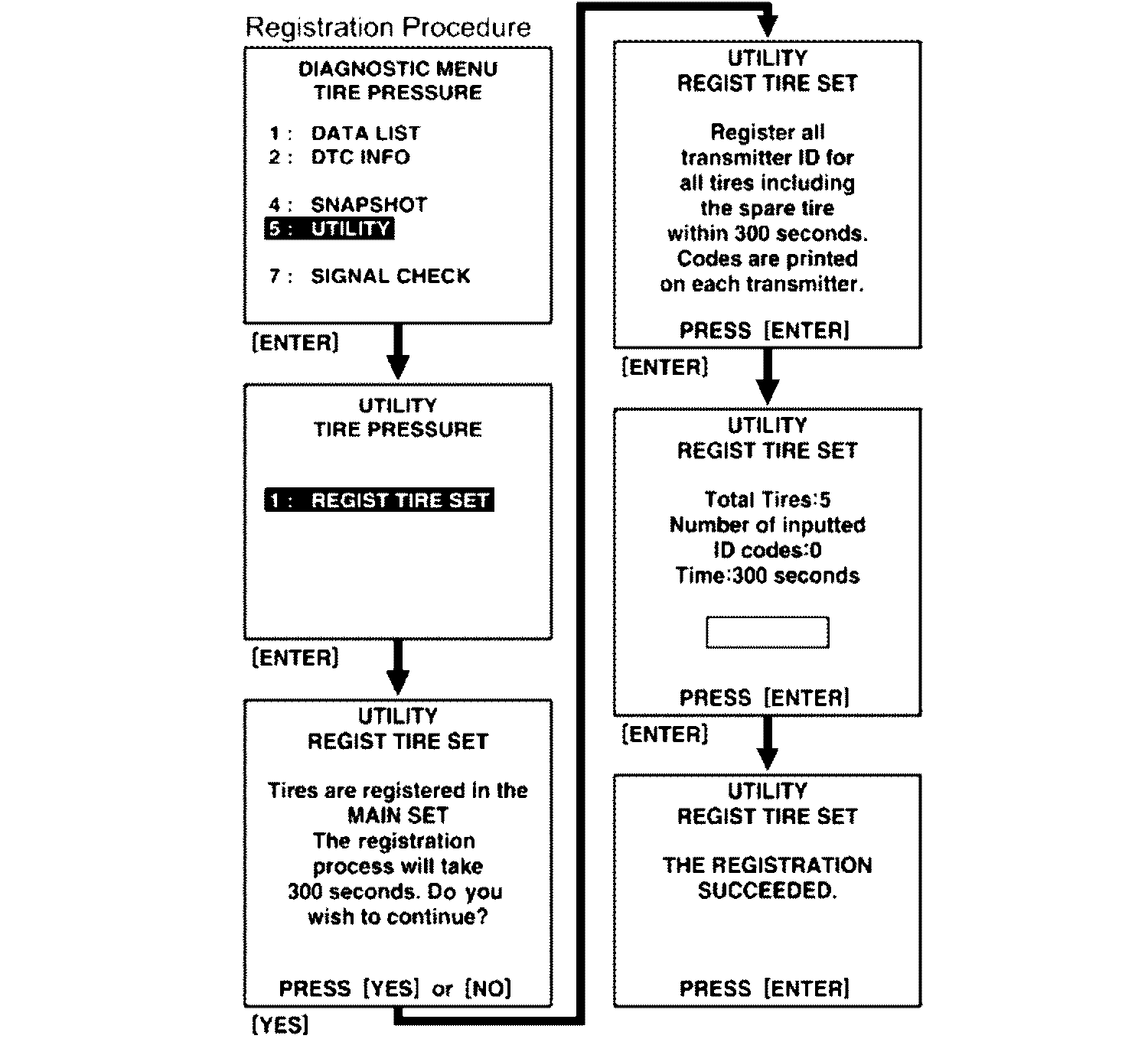

Fig 2: Registering Transmitter ID

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Confirmation Of Transmitter ID Registration

Set the pressure of all tires (including spare tire) to the pressure specified on the tire and loading information label.
Connect the hand-held tester to DLC3.
Turn ignition switch to ON position.
Select the "TIRE PRESS" by following the prompts on the hand-held tester.
Confirm accurately registered tire pressures for all tires. If all values are displayed correctly, registration was completed successfully.
NOTE: It may take 2-3 minutes to update the tire pressure data. If ID registration has not occurred, DTC 2171/71 will be recorded in the ECU after 51 minutes or more.
