Example #3 - Voltage Controlled Driver

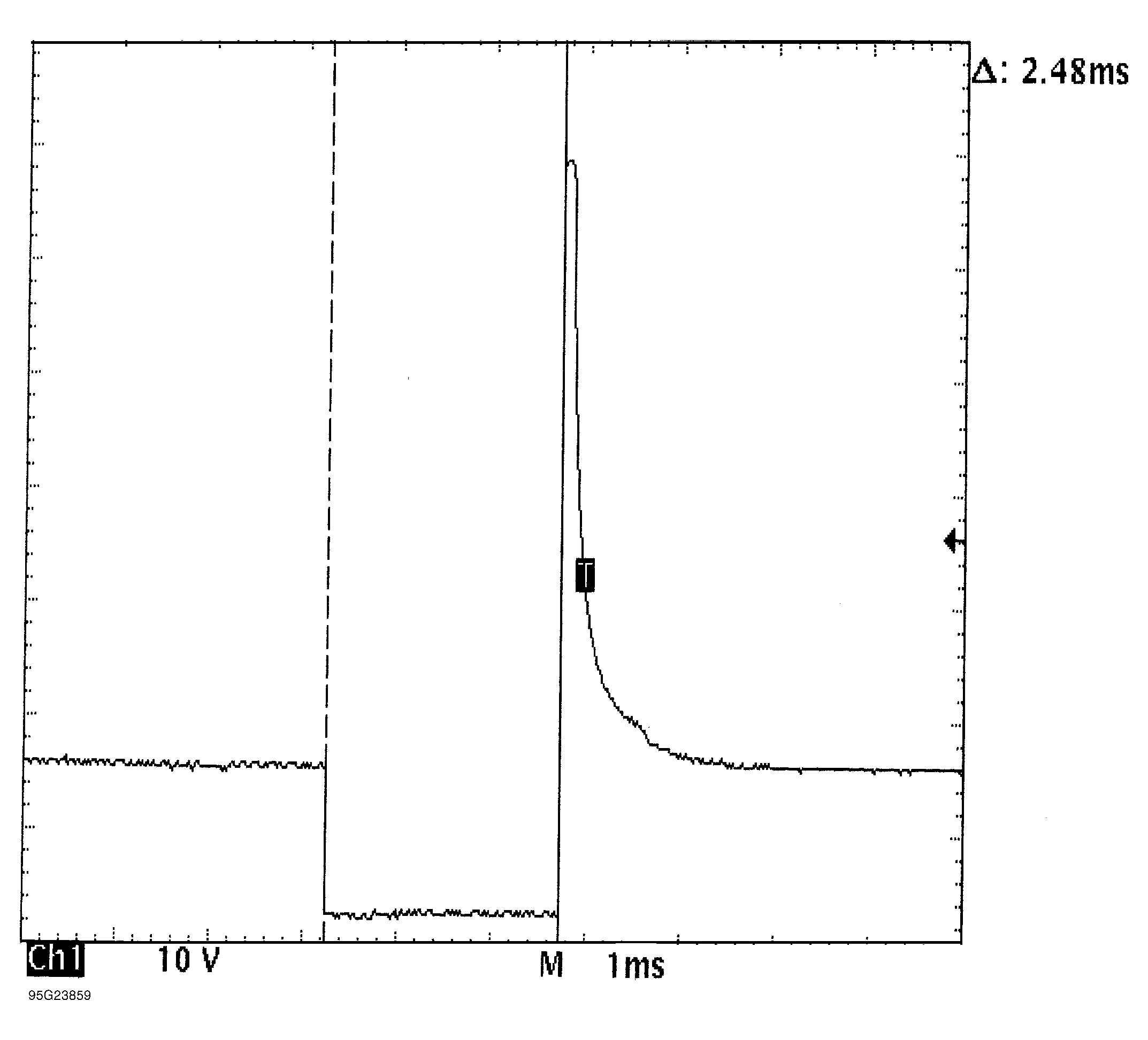

This known-good waveform pattern, Fig. Fig 1, is from a GM 5.0L V8 TPI VIN [F]. It was taken during hot idle, closed loop and no load.

Fig 1: Injector Bank - Known Good - Voltage Pattern
