Parts Location [12/2019 - 10/2022]: Illustration

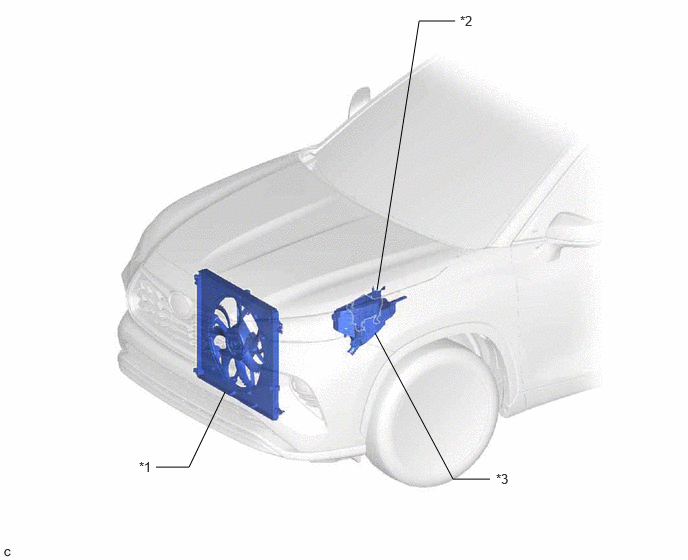

GTY851601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU		 *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- EFI-MAIN RELAY		 - -
