Cooling Fan System (2GR-FKS) - Diagnostics & Circuit Tests
>>
Cooling Fan System
>>
Cooling Fan Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

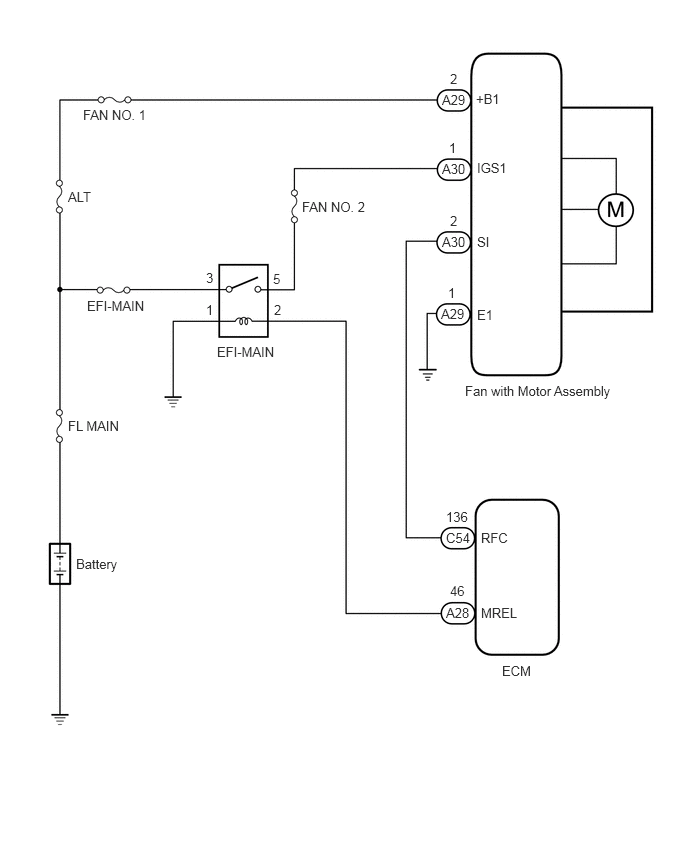

Cooling Fan Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
