Windshield Deicer System - Diagnostics & Symptom Tests
>>
Windshield Deicer System
>>
System Diagram [10/2022 - 11/2023]
>>
System Diagram [10/2022 - 11/2023]
System Diagram [10/2022 - 11/2023]

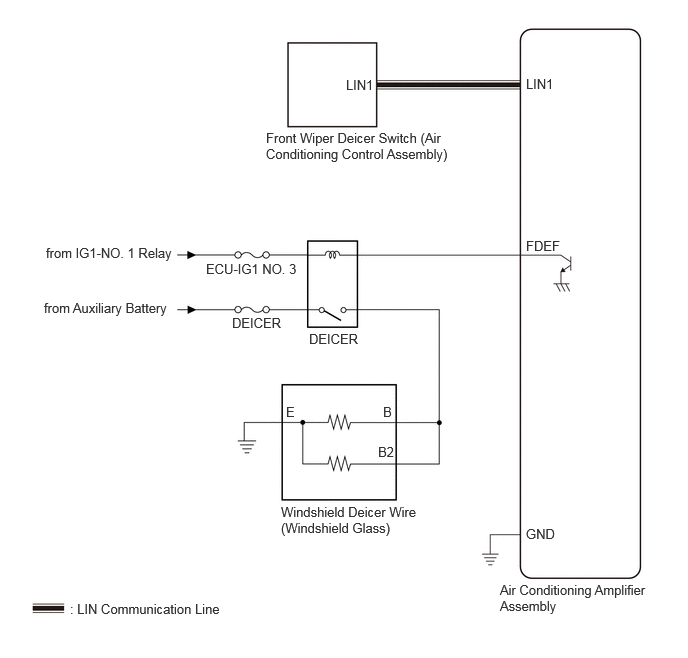

Fig 1: Windshield Deicer System Diagram [10/2022 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sender
Receiver
Signal
Communication Method
Front Wiper Deicer Switch (Air Conditioning Control Assembly)
Air Conditioning Amplifier Assembly
Front wiper deicer switch signal
LIN
