Windshield Deicer does not Operate [12/2019 - 10/2022]: Wiring Diagram

  1. For 12.3 Inch Display
    Fig 1: For 12.3 Inch Display [12/2019 - 10/2022]
    GTY875808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For 8 Inch Display

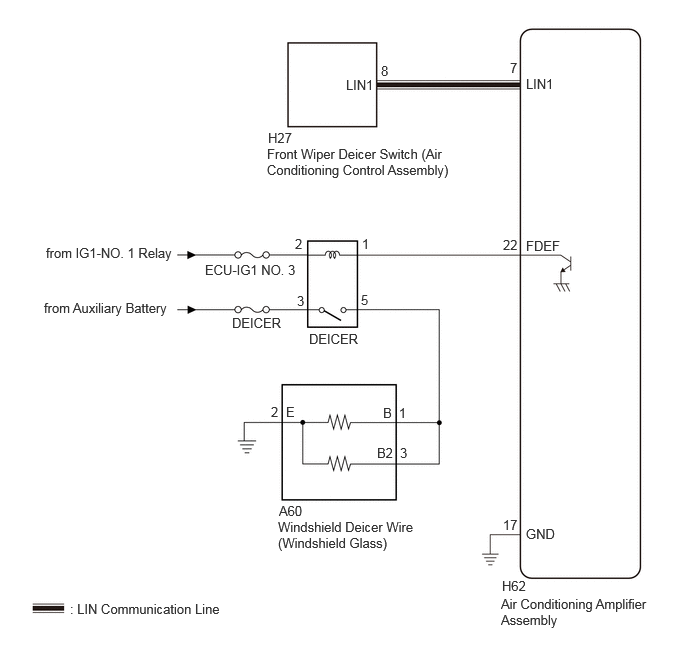

    Fig 2: For 8 Inch Display [12/2019 - 10/2022]
    GTY871403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
