Windshield Deicer does not Operate [11/2023 - ]: Procedure
- CHECK AIR CONDITIONING SYSTEM
- Check air conditioning system.
For HV Model: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]
For Gasoline Model: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]
HINT:
Both the windshield deicer system operation signal and air conditioning system operation signal are transmitted to the air conditioning amplifier assembly through same communication line.
OK
The air conditioning system operates normally.
Result
Proceed to OK NG
Result:
NG
GO TO AIR CONDITIONING SYSTEM
For HV Model: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]
For Gasoline Model: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]
Result:
OK
See step 2
- Check air conditioning system.
- PERFORM ACTIVE TEST USING GTS
- Perform the Active Test according to the display on the GTS.
Body Electrical > Air Conditioner > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Front Deicer Relay Windshield deicer wire OFF or ON - Body Electrical > Air Conditioner > Active Test
Tester Display Front Deicer Relay OK
The windshield deicer system operates normally.
Result
Proceed to OK NG
Result:
NG
See step 4
Result:
OK
See step 3
- Perform the Active Test according to the display on the GTS.
- CHECK AIR CONDITIONING CONTROL ASSEMBLY
- Replace the air conditioning control assembly with a new or known good one.
Refer to REMOVAL [10/2022 - ]
- Check that the windshield deicer system operates normally.
OK
The windshield deicer system operates normally.
Result
Proceed to OK NG
Result:
OK
END (AIR CONDITIONING CONTROL ASSEMBLY IS DEFECTIVE)
Result:
NG
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
- Replace the air conditioning control assembly with a new or known good one.
- INSPECT DEICER RELAY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω 3 - 5 Auxiliary battery voltage not applied between terminals 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE DEICER RELAY
Result:
OK
See step 5
- Measure the resistance according to the value(s) in the table below.
- CHECK WIRE HARNESS AND CONNECTOR (DEICER RELAY - POWER SUPPLY)
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition DEICER relay holder terminal 2 - Body ground Ignition switch ON 11 to 14 V DEICER relay holder terminal 3 - Body ground Ignition switch off 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- Measure the voltage according to the value(s) in the table below.
- CHECK WIRE HARNESS AND CONNECTOR (DEICER RELAY - AIR CONDITIONING AMPLIFIER ASSEMBLY)
- Disconnect the H62 air conditioning amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition DEICER relay holder terminal 1 - H62-22 (FDEF) Always Below 1 Ω DEICER relay holder terminal 1 or H62-22 (FDEF) - Body ground Always 10 kΩ higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7

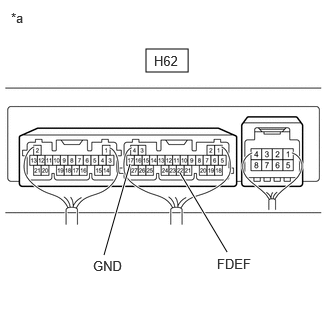

- CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
- Connect the H62 air conditioning amplifier assembly connector.
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected
(Air Conditioning Amplifier Assembly)Standard Voltage
Tester Connection Condition Specified Condition H62-22 (FDEF) - H62-17 (GND) Ignition switch ON, windshield deicer switch on Below 2.2 V H62-22 (FDEF) - H62-17 (GND) Ignition switch ON, windshield deicer switch off 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
Result:
OK
See step 8
- CHECK WIRE HARNESS AND CONNECTOR (WINDSHIELD GLASS (WINDSHIELD DEICER WIRE) - DEICER RELAY AND BODY GROUND)
- Disconnect the A60 windshield glass (windshield deicer wire) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A60-1 (B) - DEICER relay holder terminal 5 Always Below 1 Ω A60-3 (B2) - DEICER relay holder terminal 5 Always Below 1 Ω A60-1 (B) or DEICER relay holder terminal 5 - Body ground Always 10 kΩ higher A60-3 (B2) or DEICER relay holder terminal 5 - Body ground Always 10 kΩ higher A60-2 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE WINDSHIELD GLASS (WINDSHIELD DEICER WIRE)
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
