Whine Or Grind Noise From The Transmission (T-SB-0008-21)

WARNING: This page is about the Highlander Hybrid LE, 2.5L Eng VIN A, which is a different variant/trim than selected.

Publication date: 2021-02-09
Reference number: T-SB-0008-21

WHINE OR GRIND NOISE FROM THE TRANSMISSION

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-SB-0008-21, Date of Issue: February 09, 2021

TOYOTA:	2021 Avalon, Camry, Highlander
SERVICE CATEGORY:	Drivetrain
SECTION:	Automatic Transmission/Transaxle
MARKET:	USA
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2021	Avalon	VDS(s): AZ1FB, BZ1FB, CZ1FB, DZ1FB, EZ1FB, FZ1FB, GZ1FB, HZ1FB, JZ1FB
2021	Camry	VDS(s): FZ1AK, KZ1AK
2021	Highlander

INTRODUCTION

Some 2021 model year Avalon, Highlander, and Camry vehicles equipped with UA80E or UA80F transmissions may exhibit a whine or grind noise from the transmission. This condition may be caused by an issue with the front carrier assembly pinion shafts. Follow the Repair Procedure in this bulletin to address this condition.

PRODUCTION CHANGE INFORMATION

This bulletin ONLY applies to vehicles equipped with a UA80E* or UA80F** transmission
This bulletin applies to vehicles produced BETWEEN the serial ranges shown below.

PRODUCTION CHANGE INFORMATION

PLANT	MODEL	SERIAL NO. RANGE
TMMWV	Avalon	A3A20L00101 - A3A20L01041
	Avalon	A4A20L00100 - A4A20L01032
	Highlander	A3A20L00100 - A3A20L01831
	Highlander	A4A20L00101 - A4A20L01824
AISIN	Camry	20J7A25301 - 20J7A25984
		20K7A01603 - 20K7A08269
		20L7A01163 - 20L7A01239

*Avalon, Highlander 2WD, and Camry.

**Highlander 4WD.

SERIAL NUMBER LOCATION

Confirmation Effective Serial Number

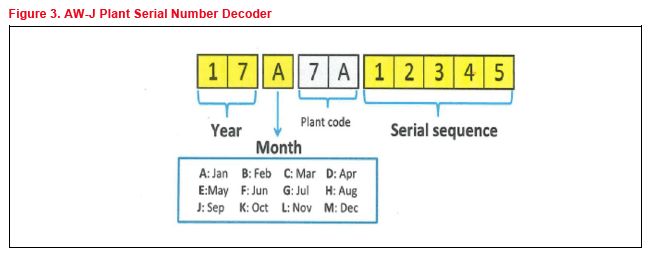

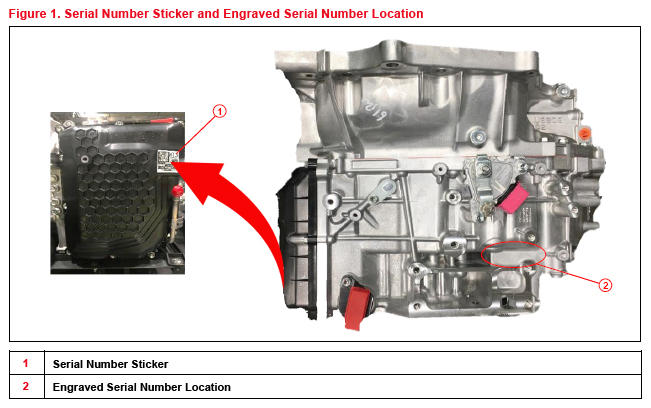

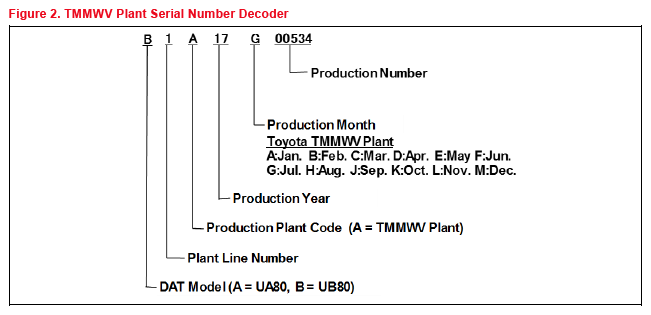

Locate the transaxle serial number, found on the sticker located on the transaxle assembly side cover or on the engraved location as shown. A serial number decoder is also provided below.

WARRANTY INFORMATION

MODEL	OP CODE	DRIVE TYPE	DESCRIPTION	TIME	OFP	T1	T2
Avalon	369011	-	R & R Transaxle Assembly, Automatic	7.6	30500-06080	91	99
Highlander		4WD		8.9	30500-0E160
Highlander		2WD		7.3	30500-0E100
Camry		-		7.1	30500-33A01
Avalon, Highlander, Camry	Combo K	-	Transaxle Assembly Add: Air Conditioning	0.8	-

APPLICABLE WARRANTY

This repair is covered under the Toyota Powertrain Warranty. This warranty is in effect for 60 months or 60, 000 miles, whichever occurs first, from the vehicle's in-service date.
Warranty application is limited to occurrence of the specified condition described in this bulletin.

PARTS INFORMATION

MODEL	DRIVE TYPE	PART NUMBER		PART NAME	QTY
MODEL	DRIVE TYPE	PREVIOUS	NEW	PART NAME	QTY
Avalon	-	30500-06080	30510-33861-84	Transaxle Assembly, Automatic	1
Highlander	4WD	30500-0E160			1
Highlander	2WD	30500-0E100			1
Camry	-	30500-33A01	30510-33861-84		1

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT

SUPPLIER

PART NUMBER

QTY

Techstream ADVi⁽¹⁾

ADE

TSADVUNIT

Techstream 2.0

TS2UNIT

Techstream Lite

TSLITEPDLR01

Techstream Lite (Green Cable)

TSLP2DLR01

⁽¹⁾	Essential SST.

NOTE:

Only ONE of the Techstream units listed above is required.
Software version 15.30.027 or later is required.
Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787.

REPAIR PROCEDURE

Confirm the vehicle exhibits one or both of the following noises from the transmission.
- Whine Noise Example
- Grind Noise Example
Does the vehicle exhibit one or both noises?
- YES - Continue to step 2.
- NO - This bulletin does NOT apply. Continue diagnosis using the applicable Repair Manual.
Is the vehicle equipped with a transmission built between the range shown in the Production Change Information section?
- YES - Continue to step 3.
- NO - This bulletin does NOT apply. Continue diagnosis using the applicable Repair Manual.
Replace the transmission.
Refer to TIS, applicable model and model year Repair Manual:
- 2021 Avalon:
  Drivetrain - Automatic Transmission/Transaxle - "UA80E (Automatic Transmission/Transaxle): Automatic Transaxle Assembly: Removal/Installation "
- 2021 Highlander (2WD):
  Drivetrain - Automatic Transmission/Transaxle - "UA80E (Automatic Transmission/Transaxle): Automatic Transaxle Assembly: Removal/Installation "
- 2021 Highlander (4WD):
  Drivetrain - Automatic Transmission/Transaxle - "UA80F (Automatic Transmission/Transaxle): Automatic Transaxle Assembly: Removal/Installation "
- 2021 Camry:
  Drivetrain - Automatic Transmission/Transaxle - "UA80F (Automatic Transmission/Transaxle): Automatic Transaxle Assembly: Removal /Installation "
Using Techstream, check and clear ANY DTCs.
Test-drive the vehicle and confirm the condition no longer exists.
