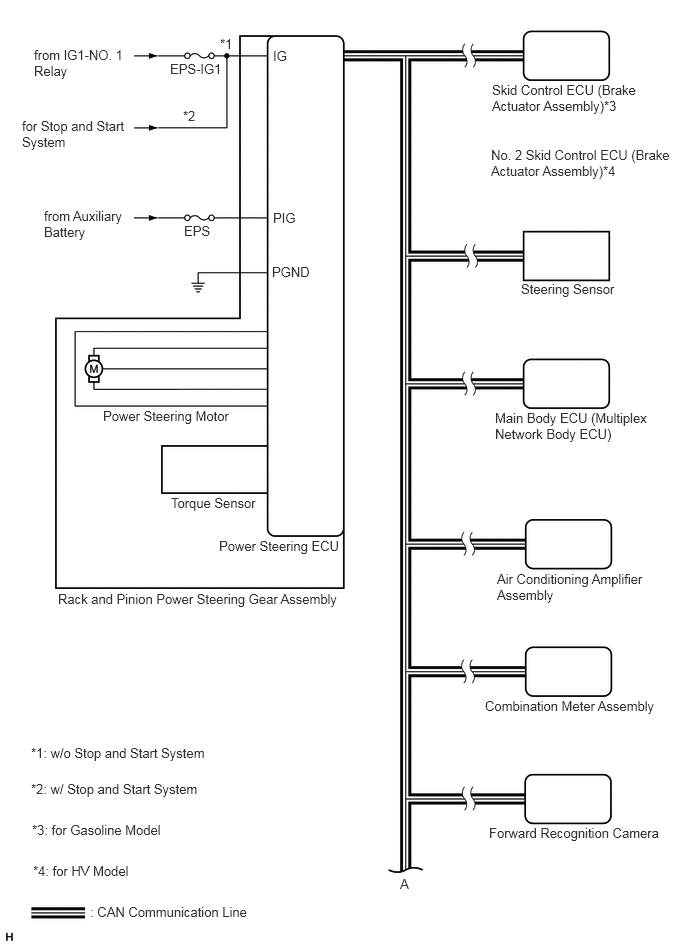

System Diagram [12/2019 - 11/2023]

GTY940303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Gasoline Model:

GTY908571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for HV Model:

GTY908570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
