Drive Mode Select Switch Circuit [10/2022 - ]: Procedure

1. Check for DTCs.

   Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 11/2023] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]

   Result

   Result	Proceed to
   CAN communication system DTCs are not output.	A
   CAN communication system DTCs are output.	B

Result:

B

GO TO CAN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - 11/2023]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2023 - ]

Result:

A

See step  2

1. Turn the engine switch off.
2. Disconnect the P3 drive mode select switch (No. 1 pattern select switch assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Drive Mode Select Switch (No. 1 Pattern Select Switch Assembly))

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P3-5 (E) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Inspect drive mode select switch (No. 1 pattern select switch assembly).

   Refer to INSPECTION [10/2022 - ]

   OK

   Drive mode select switch (No. 1 pattern select switch assembly) is normal.

   Result

   Result	Proceed to
   Drive mode select switch (No. 1 pattern select switch assembly) is normal.	A
   Drive mode select switch (No. 1 pattern select switch assembly) is abnormal.	B

Result:

B

REPLACE NO. 1 PATTERN SELECT SWITCH ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

Result:

A

See step  4

1. Connect the P3 drive mode select switch (No. 1 pattern select switch assembly) connector.
2. Disconnect the A83 ECM connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

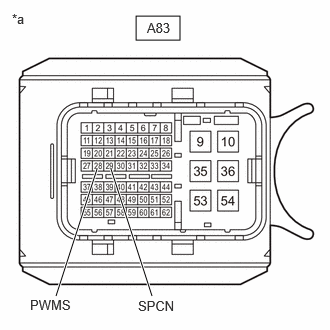

   *a	Front view of wire harness connector (to ECM)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A83-28 (PWMS) - Body ground	SPORT mode switch being turned and held	Below 1 Ω
   A83-28 (PWMS) - Body ground	SPORT mode switch not turned	10 kΩ or higher
   A83-29 (SPCN) - Body ground	NORMAL mode switch being pushed and held	Below 1 Ω
   A83-29 (SPCN) - Body ground	NORMAL mode switch not pushed	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [10/2022 - 11/2023]  , or refer to  REMOVAL [11/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
