Parts Location [11/2023 - ]: Illustration

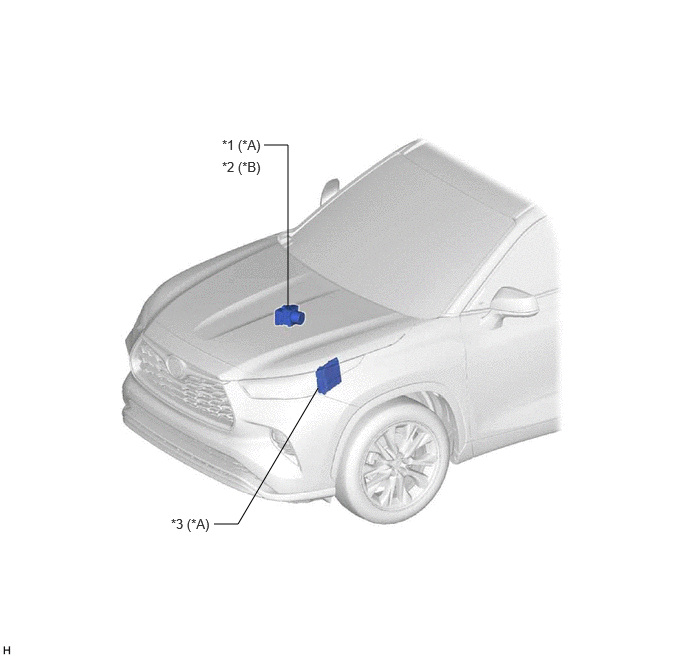

| *A | for Gasoline Model | *B | for HV Model |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *3 | ECM | - | - |

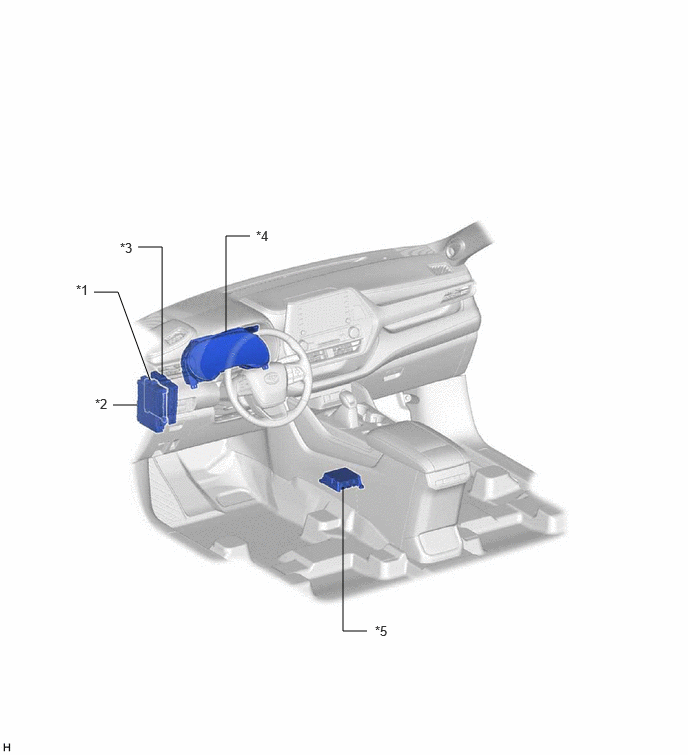

| *A | for HV Model | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | POWER DISTRIBUTION BOX ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER - FRONT SEAT BELT WARNING LIGHT - REAR SEAT BELT WARNING LIGHT |
| *5 | AIRBAG SENSOR ASSEMBLY | - | - |

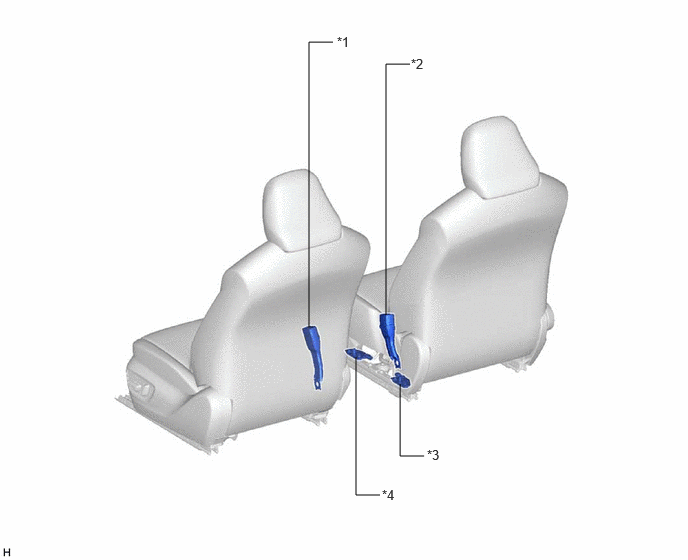

| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *3 | REAR OCCUPANT CLASSIFICATION SENSOR LH | *4 | FRONT OCCUPANT CLASSIFICATION SENSOR LH |

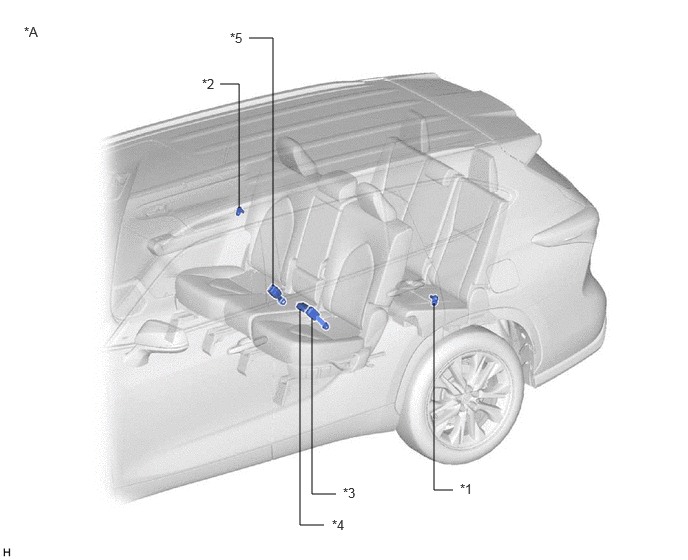

| *A | for Captain Seat Type (Rear No. 1 Seat) | - | - |
| *1 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *2 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *3 | REAR SEAT INNER BELT ASSEMBLY LH | *4 | REAR SEAT INNER BELT ASSEMBLY RH |

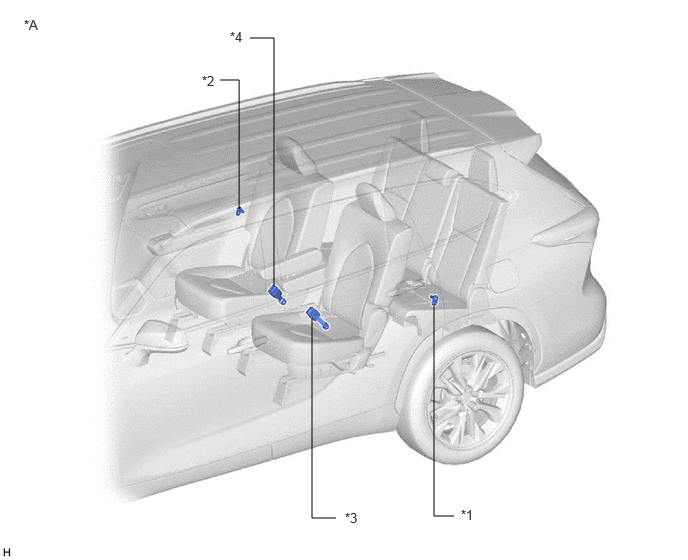

| *A | for 60/40 Split Seat Type (Rear No. 1 Seat) | - | - |
| *1 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *2 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *3 | REAR SEAT INNER BELT ASSEMBLY LH | *4 | REAR SEAT INNER BELT ASSEMBLY (CENTER) |
| *5 | REAR SEAT INNER BELT ASSEMBLY RH | - | - |
