Seat Belt Status Display Malfunction [12/2019 - 10/2022]: Wiring Diagram

GTY1177686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

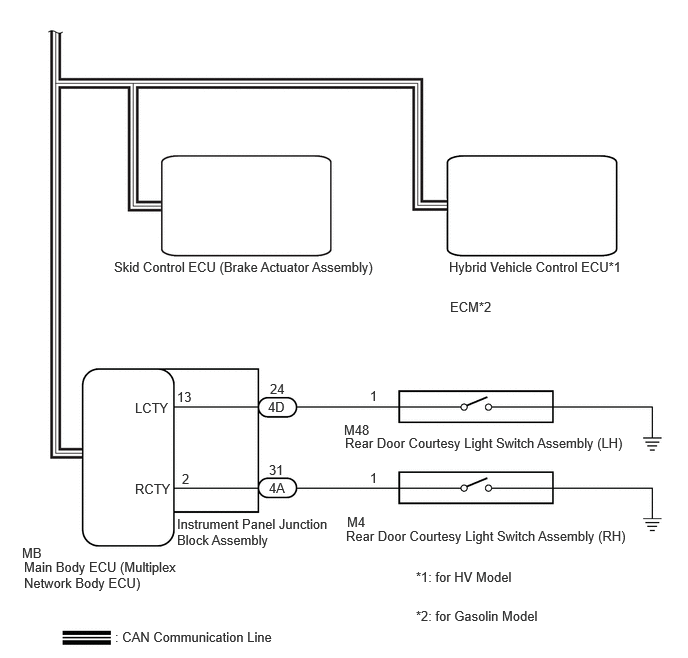

GTY1011155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
