Installation [12/2019 - ]: Procedure

  1. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH

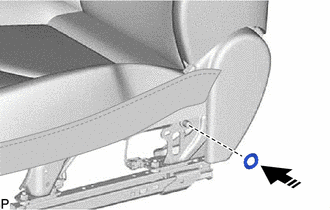

    1. Install the front seat belt anchor plate as shown in the illustration.
      GTY857749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

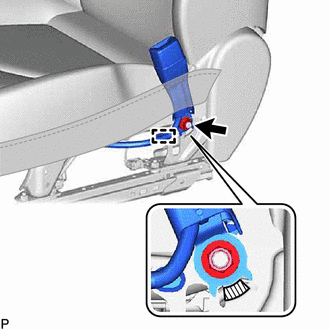

    2. Install the front seat inner belt assembly RH with the nut.
      GTY853395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part of the front seat adjuster.

    3. Connect the connector.
    4. Engage each clamp under the front seat assembly.
  2. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
