Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - 10/2022]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
    1. Disconnect each connector under the front seat assembly LH.
    2. Disengage each clamp under the front seat assembly LH.
    3. Disengage the clamp.

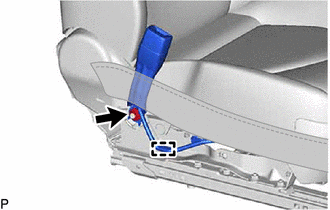

      GTY877859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and front seat inner belt assembly LH.
    5. Remove the front seat belt anchor plate as shown in the illustration.

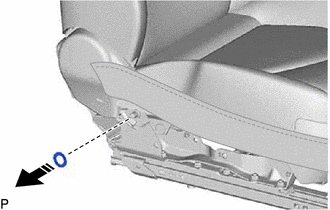

      GTY860762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Disconnect each connector under the front seat assembly RH.
    2. Disengage each clamp under the front seat assembly RH.
    3. Disengage the clamp.

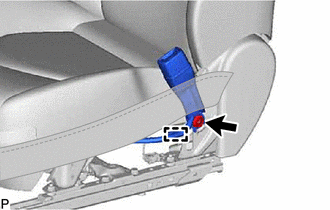

      GTY877873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and front seat inner belt assembly RH.
    5. Remove the front seat belt anchor plate as shown in the illustration.

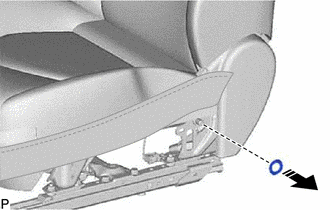

      GTY900883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
