Installation [12/2019 - ]: Procedure

  1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH

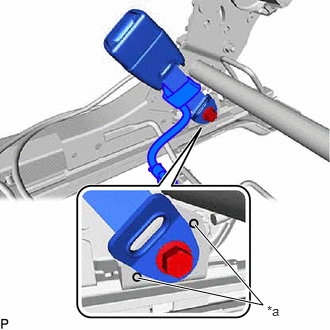

    1. Install the rear seat inner belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      GTY890888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protruding Parts
      NOTE:

      Do not allow the anchor part of the rear seat inner belt assembly LH to overlap the protruding parts of the cushion frame.

    2. Engage the clamp.
    3. Engage each clamp.
    4. Connect the connector.
  2. INSTALL REAR SEAT CUSHION HINGE COVER LH

    Refer to PROCEDURE - Step 14

  3. INSTALL REAR NO. 1 SEAT RECLINING COVER RH

    Refer to PROCEDURE - Step 15

  4. INSTALL REAR SEAT CUSHION REAR MOULDING LH

    Refer to PROCEDURE - Step 16

  5. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 20

  6. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 21

  7. INSTALL REAR SEATBACK COVER LH

    Refer to PROCEDURE - Step 22

  8. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 23

  9. INSTALL REAR SEATBACK LOCK STRIKER COVER LH

    Refer to PROCEDURE - Step 24

  10. INSTALL SEAT ARMREST ASSEMBLY LH

    Refer to PROCEDURE - Step 25

  11. INSTALL NO. 1 SEAT ARMREST CAP

    Refer to PROCEDURE - Step 26

  12. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 30

  13. INSTALL REAR SEAT CUSHION MOULDING LH

    Refer to PROCEDURE - Step 31

  14. INSTALL REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 32

  15. INSTALL REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  16. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

    Refer to PROCEDURE - Step 36

  17. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]
