Installation [12/2019 - ]: Procedure

  1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH
    1. Install the rear seat inner belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear seat inner belt assembly LH to overlap the protruding parts of the cushion frame.

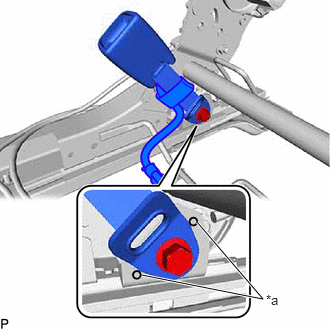

      GTY911693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protruding Parts
    2. Engage the clamp.
    3. Engage each clamp.
    4. Connect the connector.
  2. INSTALL REAR SEAT CUSHION HINGE COVER LH

    Refer to PROCEDURE - Step 14

  3. INSTALL REAR NO. 1 SEAT RECLINING COVER RH

    Refer to PROCEDURE - Step 15

  4. INSTALL REAR SEAT CUSHION REAR MOULDING LH

    Refer to PROCEDURE - Step 16

  5. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 20

  6. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 21

  7. INSTALL REAR SEATBACK COVER LH

    Refer to PROCEDURE - Step 22

  8. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 23

  9. INSTALL REAR SEATBACK LOCK STRIKER COVER LH

    Refer to PROCEDURE - Step 24

  10. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 20

  11. INSTALL REAR SEAT CUSHION MOULDING LH

    Refer to PROCEDURE - Step 29

  12. INSTALL REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 30

  13. INSTALL REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 31

  14. INSTALL SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 35

  15. INSTALL REAR SEAT CUSHION UNDER COVER LH

    Refer to PROCEDURE - Step 33

  16. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

    Refer to PROCEDURE - Step 34

  17. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]
